Access Control Accessories Keyswitch ENID
Home /
Access Control Accessories
Keyswitch

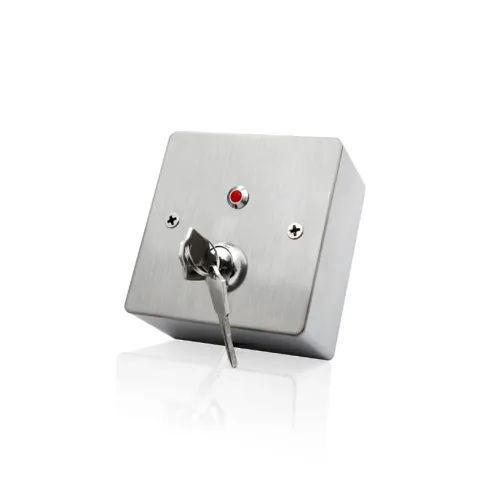

SI-KS-01
The remote key stations are designed for security system ON-OFF control applications. It is built with the universal connection terminal and can be used freely in most of the security systems.
It provides switching ON contact in latch. The key stations incorporate with tamper switch and 2 LED lamps for free connections.
Feature & Specification
Access Control Accessories Keyswitch 1 ~blog/2022/6/13/ks1
  • Features
  • Specification

    • Specification

    • Dimension : 86(L) x 86(W) x 30(H) mm
    • Contacr Rating : 3A/125-250VAC
    • Output : NO/NC/COM/TAMP
    • Mechanical Life : 100,000 Tests
    • Power : +12VDC
    • Key Switch : With Two Keys
    • Installation Mode : Hollow Door
    • Operating Temperature : -20˚C ~+55˚C (14-131F)
    • Suitable Humudity : 0-95% (relative humudity)
    • Weight : 0.098Kg
    • TAMP : Normal (NC/COM), Dismantling (NO/COM)
    • Panel : 1.7mm Thick 304 Stainless steel (Wire Drawing)
    • LED Indicator : Red LED indicator (Standby) Green LED indicator (Sensation)

Download
Keyswitch 1
