Access Control Barrier

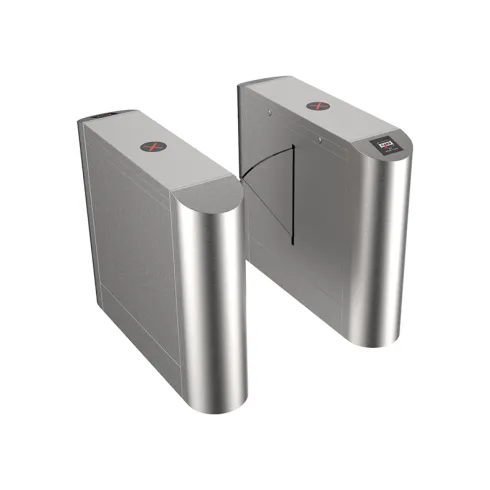

Flap Barrier Turnstille
SI-131B/132B
Feature & Specification
- Features
- Specification
- With zero self-check function, it is convenient for users to maintain and use.
- Illegal entry has an alarm prompt function.
- Anti-shock function, when the opening signal is not received, the telescopic baffle (swing arm) is automatically locked.
- Infrared/mechanical dual anti-pinch function, when the telescopic baffle (swing arm) encounters resistance during the reset process, the motor will automatically stop working within the specified time, and the strength is very small, and an alarm signal will be issued at the same time.
- With automatic reset function, after the pedestrian reads the valid card, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time.
- A unified standard external electrical interface, which can be connected to a variety of card readers, and can be remotely controlled and managed through the management computer;
- The entire system runs smoothly with low noise. -
- Driving motor DC24V brushless motor. [*] Arm material Acrylic. [*] Indoor,20 C° - 70 C°. [*] IP24. [*] MTBF 8 million times.
- Power supply voltage : 40W (left/right), 60W(middle). [*] Relative humidity : ≤ 90 %, no condensation. [*] Method of Positioning : Brushless motor + clutch + encoder. [*] Direction of passing : Uni-directional/Bi-directional. [*] Passing width : 550 mm. [*] IR Sensor : 4 Pairs. [*] Passing speed : ≥ 35 people/min. [*] Opening speed : Adjustable, fastest 0.5S. [*] Input interface : Relay ( Dry Contact ). [*] Communication Interface: Level/pulse/RS485/TCP/IP. [*] Power : 40W (left/right), 60W(middle). [*] Anti pinch : Infrared anti-pinch Current detection anti-pinch logic anti-pinch. -
