Protege WX DIN Rail Single Door Controller
PRT-WX-DIN-1D
The Protege WX DIN Rail Single Door Controller is the central processing unit responsible for the control of security, access control and building automation in the Protege WX system.

It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.
Feature & Specification

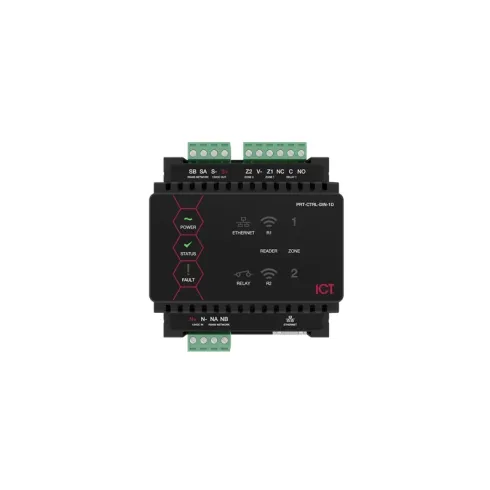

Access Control System Protege WX DIN Rail Single Door Controller 1 ~blog/2022/7/1/prt_ctrl_din_1d_front

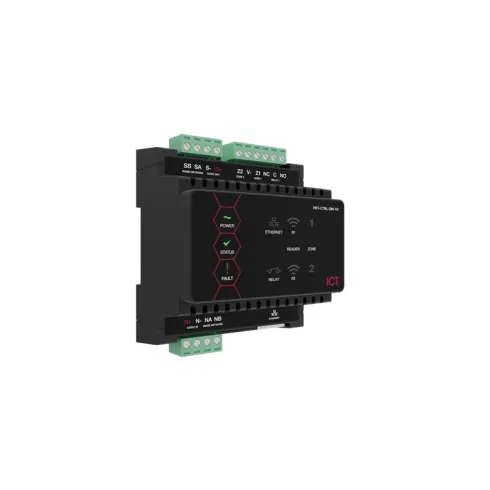

Access Control System Protege WX DIN Rail Single Door Controller 2 ~blog/2022/7/1/prt_ctrl_din_1d_side1

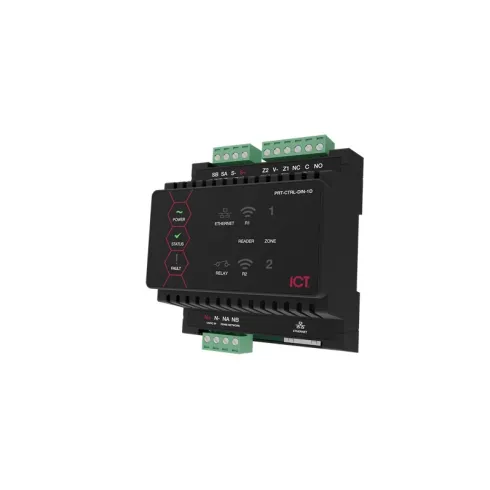

Access Control System Protege WX DIN Rail Single Door Controller 3 ~blog/2022/7/1/prt_ctrl_din_1d_side2

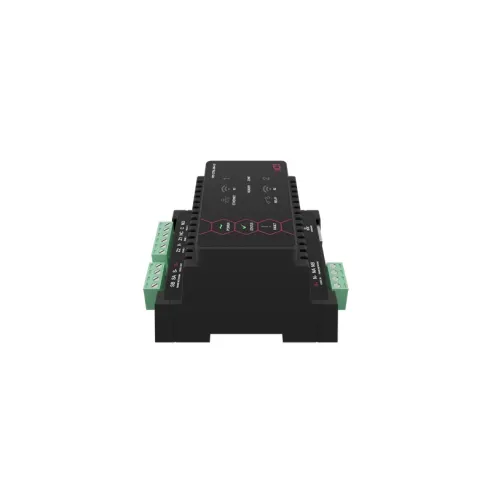

Access Control System Protege WX DIN Rail Single Door Controller 4 ~blog/2022/7/1/prt_ctrl_din_1d_top
  • Features
  • Specification

    • Specification

    • Operating Voltage : 11-14VDC
    • Operating Current : 120mA (Typical)
    • DC Output : 10.45-13.85VDC 0.7A (Typical) electronic shutdown at 1.1A
    • Total Combined Current* : 0.82A (Max)
    • Electronic Disconnection : 9.0VDC
    • Communication (Ethernet) : 10/100Mbps ethernet communication link
    • Communication (RS-485) : 2 RS-485 communication interface ports - 1 for module communications, 1 for reader communications
    • Readers : 1 RS-485 enabled reader port, allowing connection of up to 2 RS-485 capable readers providing
    • entry/exit control for a single door. RS-485 reader port connections support configuration for OSDP protocol
    • Inputs : 2 high security monitored inputs
    • Relay Outputs : 1 FORM C Relay - 7A N.O/N.C. at 30 VAC/DC resistive/inductive
    • Dimensions (L x W x H) : 78 x 90 x 60mm (3.07 x 3.54 x 2.36")
    • Net Weight : 170g (6oz)
    • Gross Weight : 230g (8.1oz)
    • Operating Temperature : -10° to 55°C (14° to 131°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
