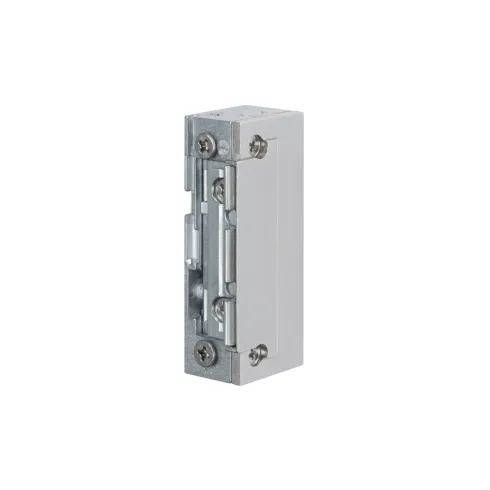

> Radius keeper, FaFix®, adjustable by 3 mm > Universal voltage > Compatible with current mortise locks > Compatible with ProFix® 2 striking plates > Optimized sliding ramp for a smooth interplay with latch bolt > Symmetrical design. DIN left/right as well as horizontal applicable
Specification
• Handing : Universal • Potential : 10-24 V AC/DC • Noise damped : Yes • Adjustable latch (FF, FaFix®) : Yes • Fail-locked : Yes • Continuous duty : 11-13 V_DC • Rated resistance : 43 Ohm • Current consumption 12 V AC : 250 mA • Current consumption 12 V DC : 280 mA • Current consumption 24 V AC : 500 mA • Current consumption 24 V DC : 560 mA • Max. latch preload AC operation 24 V : 350 N • Break-in resistance : 3750 N • Height : 66 mm • Width : 20 mm • Depth : 26 mm • FaFix® adjustment range : 3 mm • Latch bolt engaging depth : 5,5 mm • Operating temperature range : -15 °C to +40 °C • Max. latch preload AC : 200 N • Installation position : Vertical and horizontal • Load cycles for in-plant test : 250000 • Max. latch preload DC (stabilised) : 50 N • Suitable for fire doors : No • Max. latch preload DC (stabilised) 24 V : 200 N
