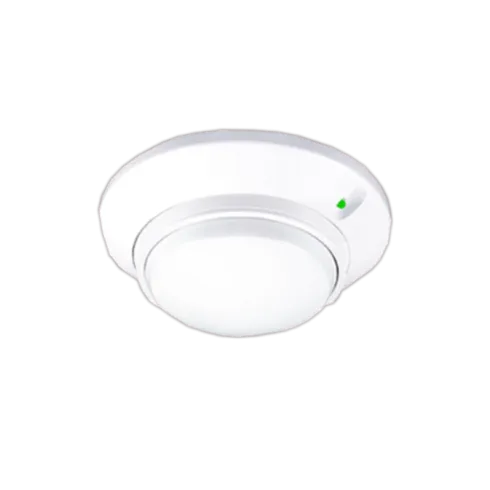

Fire Alarm Addressable ROR Heat Detector ENID
Home /
Fire Alarm
Addressable ROR Heat Detector
CM - RD - 03
Feature & Specification

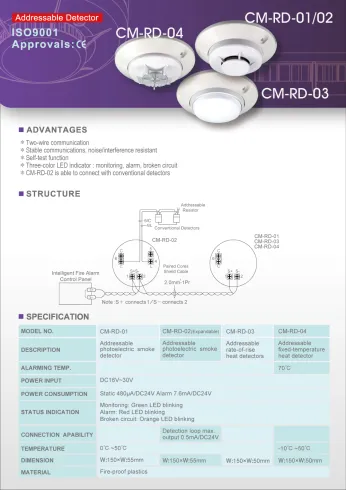

Fire Alarm Addressable ROR Heat Detector 1 ~blog/2023/8/9/cm__rd__03
Fire Alarm Addressable ROR Heat Detector 2 ~blog/2023/8/28/rd_01_04_catalog
  • Features
  • Specification

    • Specification

  • Model no: Addressable Fix Heat Detector
  • Alarming temp. : 70°C
  • Power input: 16V DC ~ 30V DC.
  • Power consumption: Static 480μA/24V DC. Alarm 7.6mA/24V DC.
  • Status indication: Monitoring= Green LED flashing
    • Alarm= RED LED flashing | Broken circuit= Orange LED flashing
  • Ambient temperature : -10°C ~ 50°C
  • Dimension : 150(W)×50(H) mm.
  • Material: Fire-proof plastics.
    • -

Download
