Specification

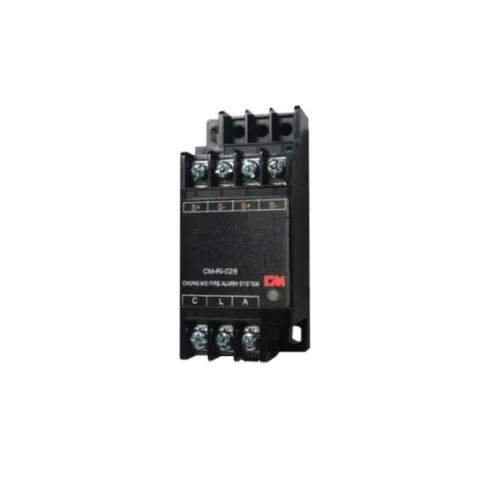

Model no : RI-02B.

Function: 1 input.

Relay output: -

Power consumption: 24V DC, max. 18mA in operation.

Communication loop: Fully two-wire multiplexing transmission, Internation resistance of communication cable < 12Ω, PE insulation wrapping of 500V communication cable > 2MΩ.

Supervisor loop: 16V ~ 24V DC, max. output 1mA/24V DC supplied by communication power; no extra power for relays; capable of receiving differential, heat, smoke, and other electronic detectors.

Terminal: Addressable resistor.

Status indication : Monitoring= Green LED flashing

Alarm= Red LED flashing | Broken circuit= Orange LED flashing.

Temperature/RH : 0°C ~ 50°C, less 95% RH, non-condensing

Dimension : 35(W) × 80(H) × 35(D) mm.

Material: Fire-proof plastics.

-
