Fire Alarm

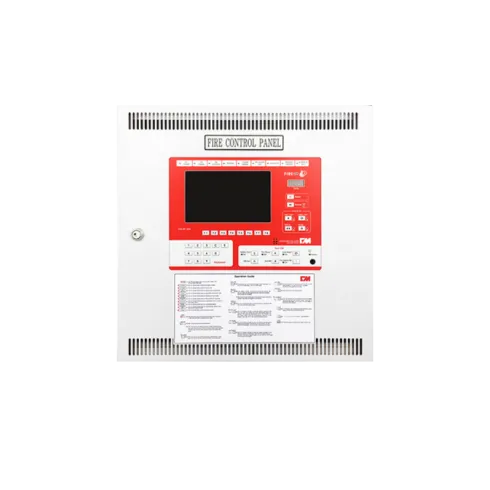

MCFA 1Loop with 250 Addressable
CM - RP - 03E
Feature & Specification
- Features
- Specification
- Two-wire communication: - Saving cabling costs, time and labor efforts.
- 7' color LCD display with easy operation interface
- Equipped with self-simulation testing and warning functions
- Freely mix addressable modules and addressable detectors. Adjustable to any kind of building projects.
- USB port: easily upload/download program
- Multi-function: Networking, Linkage, Graphic system, Central monitoring and controlling system -
- Model nio : CM-RP03E
- Loop capable: 256 ADD/LOOP
- Power input: 220V AC 50 ~ 60 Hz.
- Power consumption: 100VA/loop, approx. 50VA/extra loop.
- Communication cable: Internal resistance of communication cable < 12Ω PE insulation wrapping of 500V .communication cable > 2MΩ.
- Communication loop: Communication loop 256 points/loop 24V DC 25mA/loop provided for conventional detectors.
- Display: 7' color LCD with easy operation interface
- Event log: History message (max.9999) Instant message (max. 1000).
- Audio hom: Built-in electronic buzzer/90dB 24V DC 50mA.
- Next expansion : Networking: FACP (max.99), Repeater/Annunciator (max.64) intelligent graphic system broadcasting system.
- Battery Backup: Built-in lead acid battery and charger 24V DC 4.5AH.
- Power output: Alarm bells, indicating lamps, horns, gates, 24V DC 10A MAX.
- Relay output: Alarm, trouble both NO, NC
- Temprature/RH : 0°C ~ 50°C, less 95% RH, non-condensing.
- Dimension : 450(W) × 450(H) × 170(D) mm
- Thickness/painting: 1.2mm powder coated. -
Features
- Easy maintenance.
- Combining signal and power loop do not need voltage for connecting with conventional detectors.
