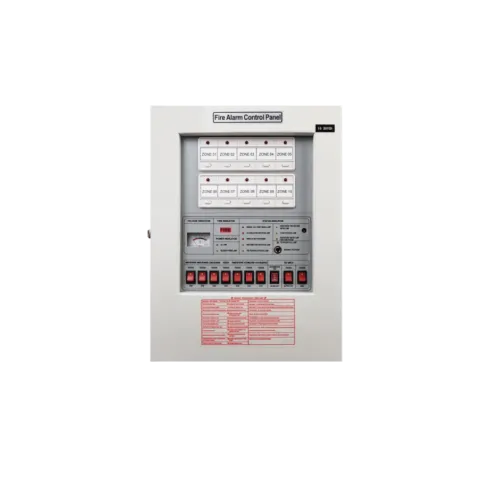

MCFA Conventional 5 Zones.
CM - P1 - 05L
Feature & Specification
Fire Alarm MCFA Conventional 5 Zones. 1 ~blog/2023/8/9/cm__p1__05l
  • Features
  • Specification

    • Specification

  • Model no: CM-P1-05L.
  • Power supply: 230V AC 50/60 Hz.
  • Standby battery: 24V DC / Lead-Acid (Non-Spillable) Battery.
  • E.O.L Resistor: 10 KΩ.
  • External circuit resistance: To-and -fro below 50 Ω.
  • No. off bells: 1.2 times panel circuits.
  • Main Audio: Single-tone buzzer, above 85 dB.
  • Current voltage: 24V DC operation voltage, below 5V 32mA.
  • Charging current: 26V DC, under 450mA, Trickle Charge.
  • Detectors: No limit of R.O.R or Fixed Temp. Heat Detector can be installed; Each circuit can connect to a maximum of 20 smoke detectors (standby current for detector: 24V DC 25 μA below).
  • No. Of indicators: 1.2 times of panel circuits (LED indicator).
  • Case material: 1.2mm~2.0mm Steel plate with powder coating.
  • Report Contact: No voltage N.O. contactCapacity 250V AC 7A × 2 sets.
    • -
