3D Stereo Vision Sensor for People Counting and Tracking | Workplace Occupation

Workplace Occupation

3D Stereo Vision Sensor for People Counting and Tracking

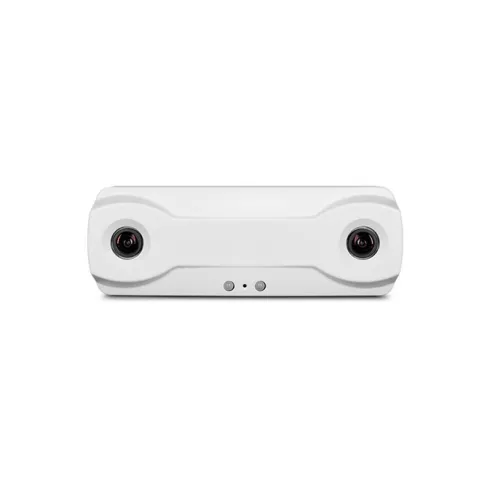

Brickstream 3D Gen 2

Make impactful decisions to grow your business! With the Brickstream 3D Gen 2, you get the people counting traffic and people flow metrics for improving sales and operations in retail, transportation hubs, and smart buildings. With it's high level of accuracy and advanced feature set, the FLIR Brickstream 3D Gen2 sensor provides real time footfall traffic data to more businesses around the world than any other sensor. Newest advances include the Employee Filtering feature and Wi-Fi connectivity capability.

Feature & Specification

Workplace Occupation 3D Stereo Vision Sensor for People Counting and Tracking 1 ~blog/2022/7/1/2510

Features
Specification

Features

> Captures in-depth customer and site metrics including trafic, queuing and service
> Works in varied conditions (dim or bright lighting, indoors or out, high or low mount)
> Simple, unobtrusive, overhead mounting (recessed mount available)
> Supports tilt on both the X and Y axis
> Supports up to 32 metric collection zones per sensor
> Height iltering can exclude children or count children separately
> Filter zones, exclusion lines and pass lines enable tailoring for speciic trafic situations
> Shopping units are used to improve conversion rate accuracy
> Multi-sensor path linking
> Privacy ilters
> Employee Filtering feature for true customer counts
> Remote device coniguration and management via standard web browser
> Remote task automation across large number of cameras using Brickstream Device Manager
> Remote on-demand or scheduled accuracy validation
> Java-free interface
> No in-store computer required

Specification

• Power : Maximum 6W, Power-over-Ethernet (Class 2)
• Operating Temp. Range : 0 °C to 45 °C
• Storage Temp. Range : -30 °C to 65 °C
• Memory : 512 MB RAM
• Micro SD Support : 8GB microSD card
• Operating System : Linux
• Cabling : Category 5e
• Ethernet : Single Channel 10/100/1000 Mb Ethernet
• Addressing : DHCP or Static IP
• Protocols : TCP/IP, DHCP, HTTP Proxy
• Time Synchronization : SNTP, Daytime Protocol, Proprietary
• Data Delivery : HTTP, SMTP, FTP
• Secure Data Delivery : HTTPS, FTPS
• Software Upgrade : TFTP, HTTP, HTTPS
• Wi-Fi/BLE Support : optional
• Device Dimensions : 59 x 162 x 40.5 mm
• Lens Options : 2.5mm for mounting height 2.2 – 7m; 6.0mm for mounting height 6 – 14m
• Enclosure : Plastic; available in white and black
• Ceiling Mount : Base of 2-part case attaches directly to ceiling for surface mount, Base also offers ¼”-20 threaded mount for external mount or pole; Recessed and outdoor mount accessories available
• Weight : 0.25 kg
• LEDs : 2 tri-state status indicators

Download

3D Stereo Vision Sensor for People Counting and Tracking 1
