Contactless Smart Card Reader - Wall Switch

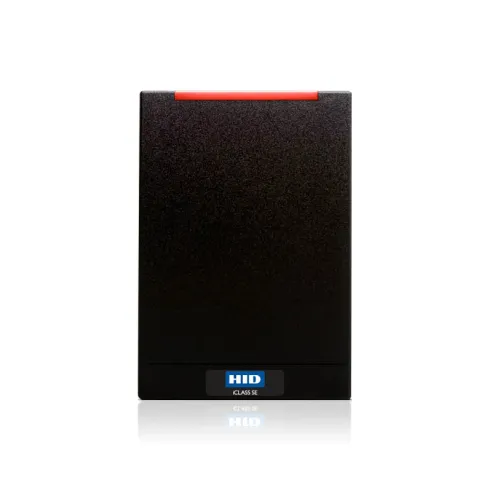

HID® iCLASS SE® R40

iCLASS SE® R40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring standard wall switch mounting, iCLASS SE® R40 supports a broad array of credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.

Feature & Specification

Access Control Reader Contactless Smart Card Reader - Wall Switch 1 ~blog/2022/6/17/r40

Features
Specification

Features

> Adaptable - Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
> Powerfully Secure - The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
> Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Specification

• Typical Read Range : 13.56 MHz Single Technology ID-1 Cards: iCLASS Seos: 3.2" (8 cm), iCLASS: 5.2" (13 cm), MIFARE Classic: 3.9" (10 cm), MIFARE DESFire EV1/EV2 3.2" (8 cm)13.56 MHz Single Technology Tags/Fobs: iCLASS: 2.8" (7 cm), MIFARE Classic: 2.0" (5 cm)
• Mounting : Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing
• Mounting Spacer : To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers
• Color : Black
• Dimensions : 8.4 cm x 12.2 cm x 2.4 cm
• Product Weight (Pigtail) : 7.7 oz (220g)
• Product Weight (Terminal Strip) : 7.5 oz (215g)
• Operating Voltage Range : 5-16 VDC
• Current Draw - Standard Power Mode (mA) : 65 @ 16V
• Current Draw - Intelligent Power Management (IPM) Mode (mA) : 40 @ 16V
• Peak Current Draw - Standard Power or IPM Mode (mA) : 200 @ 16V
• NSC Power Consumption - Standard Power Mode : 1.0 @ 16V
• NSC Power Consumption - w/ IPM : 0.6 @ 16V
• Operating Temperature : -31˚ to 150˚ F (-35˚ to 65˚ C)
• Storage Temperature : -67˚ to 185˚ F (-55˚ to 85˚ C)
• Operating Humidity : 5% to 95% relative humidity non-condensing
• Environmental Rating : Indoor/Outdoor IP55; IP65 if installed with optional gasket
• Transmit Frequency : 13.56 MHz
• 13.56 MHz Card Compatibility : Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - MIFARE Classic and MIFARE DESFire EV1 custom data models - standard iCLASS Access Control Application (order with Standard interpreter) - ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - FeliCa™ CSN, CEPAS CSN or CAN - MIFARE DESFire EV2 via EV1 backward compatibility
• Communications : Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
