Mini-Mullion Contactless Smartcard Reader

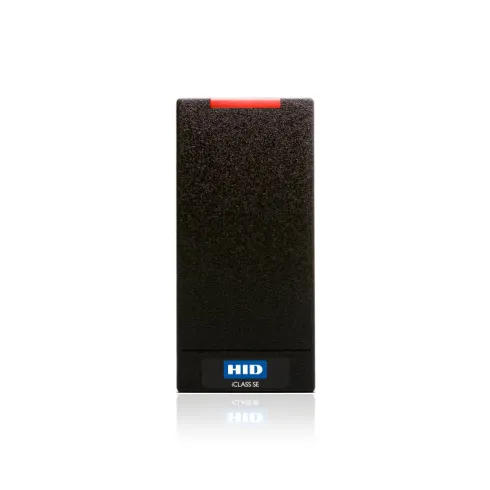

HID® iCLASS SE® R10

iCLASS SE® R10 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, iCLASS SE® R10 supports a broad array of credential technologies and a variety of form factors including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.

Feature & Specification

Access Control Reader Mini-Mullion Contactless Smartcard Reader 1 ~blog/2022/6/17/r10

Features
Specification

Features

> Adaptable - Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
> Powerfully Secure - The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
> Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Specification

• Typical Read Range : 13.56 MHz Single Technology ID-1 Cards: iCLASS Seos: 2.4" (6 cm), iCLASS: 3.6" (9 cm), MIFARE Classic: 2.4" (6 cm), MIFARE DESFire EV1/EV2: 2.4" (6 cm); 13.56 MHz Single Technology Tags/Fobs: iCLASS: 1.6" (4 cm), MIFARE Classic: 1.2" (3 cm)
• Mounting : Ideally suited for mullion-mounted door installations or any flat surface
• Mounting Spacer : To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers
• Color : Black
• Dimensions : 4.8 cm x 10.3 cm x 2.3 cm
• Product Weight (Pigtail) : 3.9 oz (113g)
• Product Weight (Terminal Strip) : 2.9 oz (84g)
• Operating Voltage Range : 5-16 VDC
• Current Draw - Standard Power Mode (mA) : 60 @ 16V
• Current Draw - Intelligent Power Management (IPM) Mode (mA) : 35 @ 16V
• Peak Current Draw - Standard Power or IPM Mode (mA) : 200 @ 16V
• NSC Power Consumption - Standard Power Mode : 1.0 @ 16V
• NSC Power Consumption - w/ IPM : 0.6 @ 16V
• Operating Temperature : -31˚ to 150˚ F (-35˚ to 65˚ C)
• Storage Temperature : -67˚ to 185˚ F (-55˚ to 85˚ C)
• Operating Humidity : 5% to 95% relative humidity non-condensing
• Environmental Rating : Indoor/Outdoor IP55; IP65 if installed with optional gasket
• Transmit Frequency : 13.56 MHz
• 13.56 MHz Card Compatibility : Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - MIFARE Classic and MIFARE DESFire EV1 custom data models - standard iCLASS Access Control Application (order with Standard interpreter) - ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - FeliCa™ CSN, CEPAS CSN or CAN - MIFARE DESFire EV2 via EV1 backward compatibility
• Communications : Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
