Card & Credential UHF Combi Card ENID
Home /
Card & Credential
UHF Combi Card
9xxxxxx

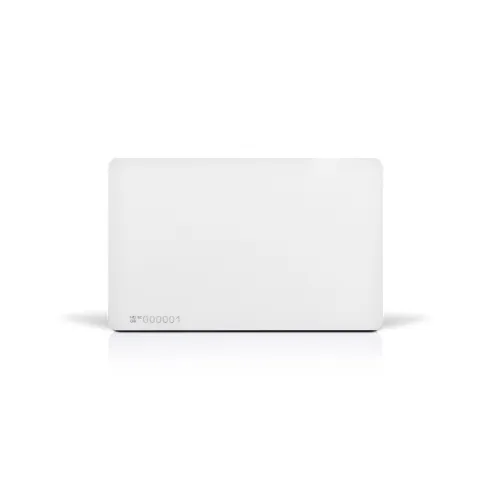

The UHF Combi Card is featured with long-range UHF and proximity or smartcard technology. It ensures the use of one single card for both vehicle and building access applications. Based on passive UHF technology (± 900 MHz), the UHF Combi Card is identified up to 10 meters (33 feet) with uPASS Target, 5 meters (16 feet) with uPASS Reach or 2 meters (6 feet) with uPASS Access.
Feature & Specification
Card & Credential UHF Combi Card 1 ~blog/2022/6/15/uhf
  • Features
  • Specification

    • Specification

    • Part number: 9943943 UHF ISO Card, 9942343 Combi Card UHF - Mifare 1K, 9206388 Combi Card UHF - Mifare DESfire 4K, 9943960 Combi Card UHF - Legic Advant, 9942360 Combi Card UHF - EM4102, 9954082 Combi Card UHF - HID Prox Wiegand 26, 9954104 Combi Card UHF- HID Prox, 9954112 Combi Card UHF - HID iClass 2K Wiegand 26, 9959343 Combi Card UHF - HID iClass 2K, 9955836 Bundle 25 Combi Cards UHF – HID Prox Wiegand 26, 9955844 Bundle 100 Combi Cards UHF – HID Prox Wiegand 26
    • Dimensions : 85 x 54 x 0,95 mm (3.4 x 2.2 <0.04 in)
    • Color : White
    • Weight : 6 g (0.21 oz)
    • Protection class : IP65 (approx.NEMA4x)
    • Material : PVC
    • Customization : Customized printing available on request
    • Operating temperature : -10… +50°C (+14 … +122°F)
    • Storage temperature : -10… +50°C (+14 … +122°F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : UHF - up to 10 meters (33 feet) with uPASS Target, up to 5 meters (16 feet) with uPASS Reach, up to 2 meters (6 feet) with uPASS Access, Proximity / Smartcard - few cm, depending on applied reader and card technology
    • Operating frequency : UHF 865 - 870 MHz / 902 - 928 MHz (UHF ISO Card), UHF 865 - 870 MHz / 902 - 928 MHz & 13.56 MHz (Mifare / Legic/HID iClass), UHF 865 - 870 MHz / 902 - 928 MHz & 125 kHz (EM/HID Prox)
    • Antenna polarization : Linearly polarized antenna

Download
UHF Combi Card 1
