Window Button Long-range Vehicle Identification Tag
9882650

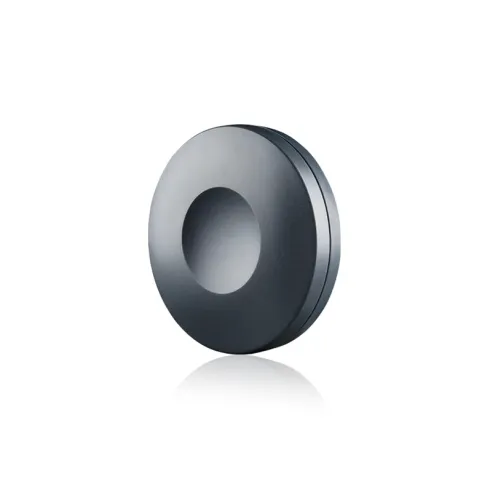

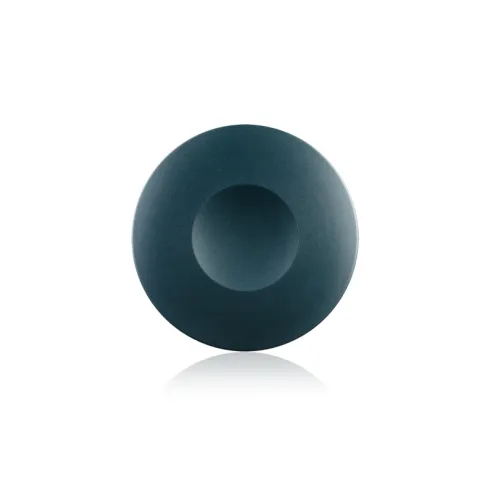

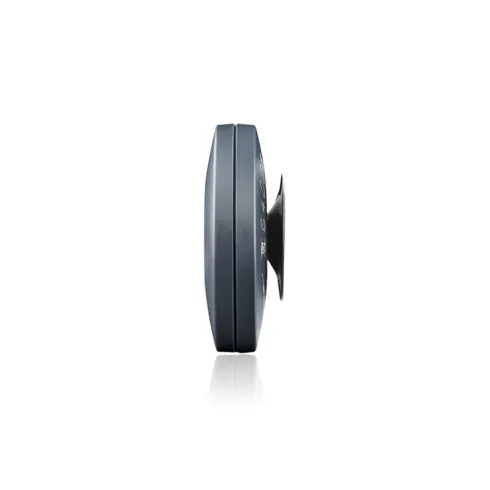

The Window Button is a long-range vehicle identification tag. Based on semi-active RFID technology (2,45 GHz), the Window Button is identified at distances up to 10 meters (33 feet) with Nedap’s TRANSIT Ultimate reader. In combination with the TRANSIT Entry reader, the tag is identified up to 4 meters (12 feet).
Feature & Specification
Card & Credential Window Button Long-range Vehicle Identification Tag 1 ~blog/2022/6/15/wb1
Card & Credential Window Button Long-range Vehicle Identification Tag 2 ~blog/2022/6/15/wb2
Card & Credential Window Button Long-range Vehicle Identification Tag 3 ~blog/2022/6/15/wb3
  • Features
  • Specification

    • Specification

    • Dimensions : Ø76 mm (2.9 in)
    • Color : Anthracite, according to RAL 7016
    • Weight : 60 g (2.12 oz)
    • Protection class : IP32 (approx. NEMA2)
    • Material : PC
    • Operating temperature : -40 ... +85°C (-40 … +185°F)
    • Storage temperature : -40 ... +85°C (-40 … +185°F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : 10 meters (33 ft) with TRANSIT Ultimate or TRANSIT Standard, 4 meters (12 ft) with TRANSIT Entry
    • Operating frequency : 2.45 GHz / 120 kHz
    • Operating modes : RO-A = read-only, always on (Window Button), RO-A/b = read-only, always on, battery-low enabled (Window Button), RO-C = read-only, switch button activation (Window Button Switch), RO-C/b = read-only, switch button activation, battery-low enabled (Window Button Switch)
    • Air interface : Nedap proprietary encoding standard
    • Battery : Built-in lithium battery with an expected lifetime of 10 years. The lifetime is not affected by the number of times the tag is read or by RF fields from other sources.
    • Mounting : Attaches with a suction pad to the inside of all normal windscreens. In case of a metalized windscreen a metal free communication window is required.
    • Compatible readers : 9215689 TRANSIT Ultimate, 9990410 TRANSIT Standard, 9875220 TRANSIT Standard USA, 9876200 TRANSIT Entry
