Omnikey Reader Contactless High Frequency Smart Card Reader ENID
Home /
Omnikey Reader
Contactless High Frequency Smart Card Reader
HID® OMNIKEY® 5023
HID Global’s OMNIKEY® 5023 enables strong authentication to computer, network or cloud applications, supporting 13.56 MHz credentials with enhanced system security such as iCLASS Seos®, iCLASS SE®, iCLASS Elite®.

Typical environments for the reader include healthcare, pharmaceutical, financial services, enterprise, government and other agencies seeking higher security and access management.
Feature & Specification

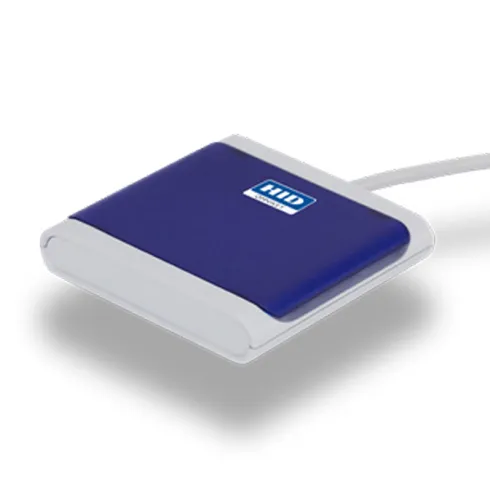

Omnikey Reader Contactless High Frequency Smart Card Reader 1 ~blog/2022/6/6/50221

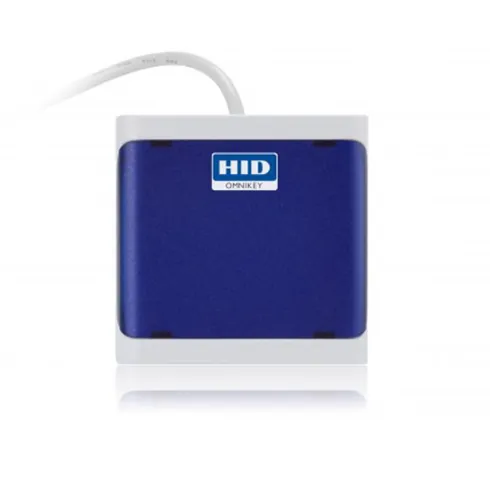

Omnikey Reader Contactless High Frequency Smart Card Reader 2 ~blog/2022/6/6/50222
  • Features
  • Specification

    • Specification

    • Protocols : T=CL, MIFARE®, iCLASS®, ISO 14443A/B - up to 848 kbps (depending on card) iCLASS SE and Seos (can read data only / no writing), Felica (only UID), NFC Tag (1,2,3,4)
    • USB Interface : USB 2.0 Full Speed Device (12 Mbps), USB 3.0 extended operability, tested with hubs/controllers
    • Connector / Cable : USB Type A connector; 59.1" (150 cm) cable
    • Operating Systems : Windows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2, Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+, Mac OS X; Android™ 4.x-7.x**
    • Driver : CCID native driver from operating system (Windows/Linux/Mac)
    • Supported APIs : PC/SC - API, SAM - API
    • Status Indicator : White LED
    • Housing : Poly Carbonate, BBody Light Grey / Cover in Dark Blue
    • Dimensions : 2.32"" x 2.32" x 0.44" (59 x 59 x 11,4 mm)
    • Weight : ~70 g (2.5 oz)
    • Operating Temperature : 32-158 F (0-70°C)
    • Operating Humidity :10-95% rH (not condensing)
    • Storage Temperature : -4 - 176 F (-40 - 80°C)
    • Meantime Between Failure (MTBF) : 500.000 hours

Download
Contactless High Frequency Smart Card Reader 1
