Smart Card Reader for SIM-sized Smart Cards

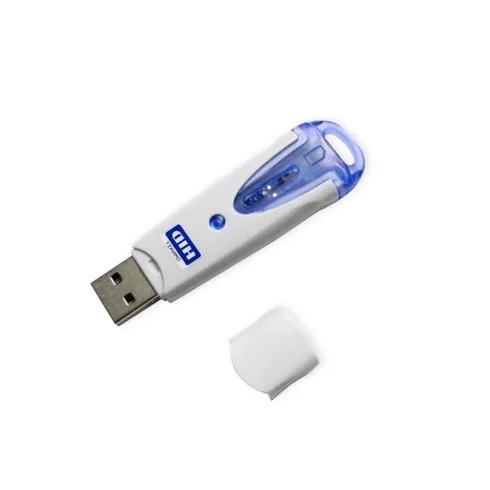

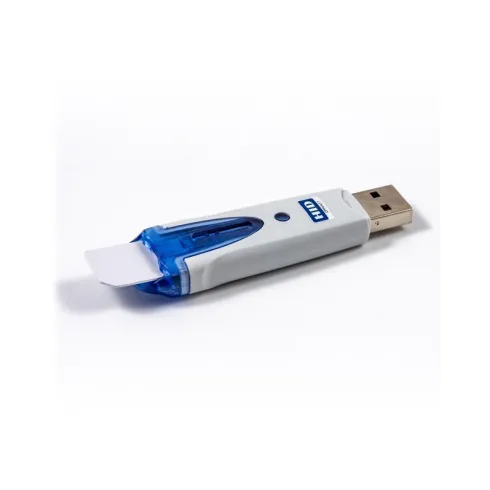

HID® OMNIKEY® 6121 Mobile USB

The portable OMNIKEY® 6121 is designed for SIM-sized smart cards. Carry the reader with your credentials in your pocket or on your key ring and plug it into your PC via the USB port to access your sensitive data. The reader is based on the same technology and drivers as the OMNIKEY® desktop product family and is therefore just as easy to integrate into your application.

The OMNIKEY® 6121 is designed to meet all major standards like ISO 7816, USB CCID, PC / SC, HBCI (Home Banking Computer Interface) and many more.

Feature & Specification

Omnikey Reader Smart Card Reader for SIM-sized Smart Cards 1 ~blog/2022/6/6/61211

Omnikey Reader Smart Card Reader for SIM-sized Smart Cards 2 ~blog/2022/6/6/61212

Features
Specification

Features

> Meets major standards, including ISO 7816, USB CCID, PC / SC and HBCI (Home Banking Computer Interface)
> All major operating systems supported
> Supports high-speed data transmission
> UPC barcode for easier logistics
> USB CCID support makes integration into an existing system the easiest ever by connecting host and smart card reader without the need for additional drivers

Specification

• Card Size : ID-000 (SIM size)
• Standards : ISO 7816
• Supported Card Types : Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; Class C: 1.8V @35 mA , ATR response time up to 1.6 s
• Protocols : Asynchronous: T=0; T=1, Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire)
• Insertion Cycles : 30,000
• Smart Card Clock Frequency : Up to 12 MHz
• Smart Card detection : Movement detection with auto power-off; Automatic detection of smart card type; Short circuit and thermal protection
• 8-Pin Handling : C4 / C8 supported
• USB Interface : USB 2.0 Full Speed Device (12 MBps), USB 3.0 extended operability, tested with hubs/controllers
• Operating Systems : Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2, Windows CE (6/7) depending on hardware, Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+, Mac OS X; Android™
• Driver : CCID native driver from operating system
• Supported APIs : PC/SC - API
• Status indicator : Orange LED
• Housing : Grey blue polycarbonate
• Dimensions : 2.91" x 0.83" x 0.4" (74 x 21 x 10 mm)
• Weight : 0.35 oz (10g)
• Operating Temperature : 32-131 F (0-55°C)
• Operating Humidity : 10-90% rH
• Storage Temperature : -4 - 176 F (-20 - 80°C)
• Meantime Between Failure (MTBF) : 500.000 hours
