Specification

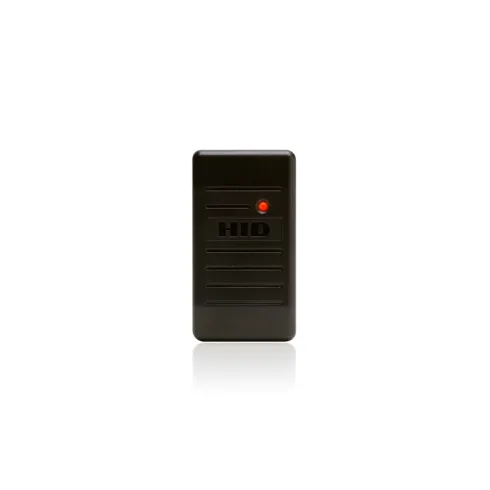

• Model Number : 6005B Wiegand Interface, 6008B Clock-and-Data Interface
• Read Range : ProxCard® II card - up to 3” (7.6 cm), ISOProx® II card - up to 2.5” (6.35 cm), DuoProx® II card - up to 2.5” (6.35 cm), Smart ISOProx®/DuoProx® II cards - up to 2.5” (6.35 cm), Proximity & MIFARE® card - up to 2.5” (6.35 cm), ProxCard® Plus card - up to 1.0” (2.5 cm), ProxKey® II key fob - up to 1.5” (3.8 cm), MicroProx® Tag - up to 2” (5.1 cm)
• Mounting : Unobtrusive design can be mounted directly onto metal such as door mullions.
• Color : • CLASSIC series cover in gray, beige, black or white (or) • Designer series cover in grey, wave blue, black or white
• Dimensions : 7.96 x 4.37 x 1.68 cm
• Power Supply : 5-16 VDC, Linear supply recommended
• Power Requirements (StandardPower) : Current (DC) Average 30 mA, Peak 75 mA
• Operating Temperature : -22° to 150° F (-30° to 65° C)
• Operating Humidity : 0-95% relative humidity noncondensing
• Transmit Frequency : 125 kHz
• Environmental : IP55
• Cable Distance : Wiegand/Clock-and-Data Interface 500ft (150m) 22 AWG
