Specification

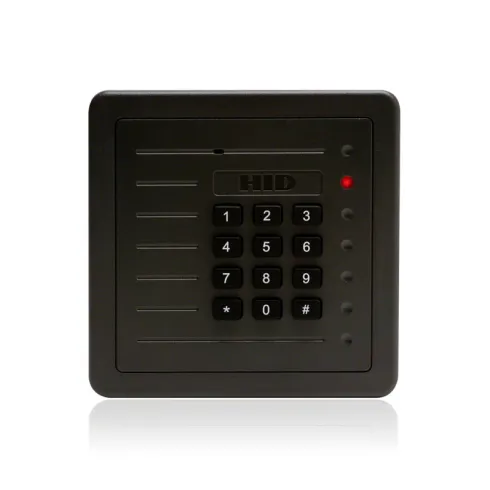

• Model Number : 5355: Wiegand Interface/Clock-and-Data (configurable), 5352: Serial Interface
• Read Range : ProxCard® II card - up to 8” (20 cm), ISOProx® II card - up to 7” (17.5 cm), DuoProx® II card - up to 7” (17.5 cm), Smart ISOProx® II card - up to 7” (17.5 cm), Smart DuoProx® II card - up to 7” (17.5 cm), HID Proximity & MIFARE® card – up to 7” (17.5 cm), ProxCard® Plus card - up to 3” (7.5 cm), ProxKey® II key fob - up to 3” (7.5 cm), MicroProx® Tag - up to 4” (10.2 cm), ProxPass® Active Vehicle Tag - N/A
• Mounting : Mounting holes fit standard U.S.A. single-gang switch boxes (vertically mounted) to simplify installation. Field adjustable for mounting directly to metal, exhibiting only minimal effects on read range. A selectable jumper setting provides for improved performance.
• Color : Gray or Beige
• Keypad : Optional
• Dimensions : 12.7 x 12.7 x 2.54 cm
• Power Supply : 10-28.5 VDC; Linear power supplies recommended. Reverse voltage protection included.
• Power Requirements (Standard Power) : Average: 100 mA (12 VDC), Peak: 120 mA (24 VDC)
• Operating Temperature : -22° to 150° F (-30° to 65° C)
• Operating Humidity : 0-95% relative humidity noncondensing
• Transmit Frequency : 125 kHz
• Environmental : IP54
• Cable Distance : Wiegand or Clock-and-Data interface: 500 feet (152 m), RS-232 interface: 50 feet (15 m), RS-422 interface: 4000 feet (1219 m), Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded cable with drain wire, or equivalent for data, plus ALPHA 1292C two-conductor shielded or equivalent for DC power.
