Contactless Smart Card Reader - Wall Switch Keypad

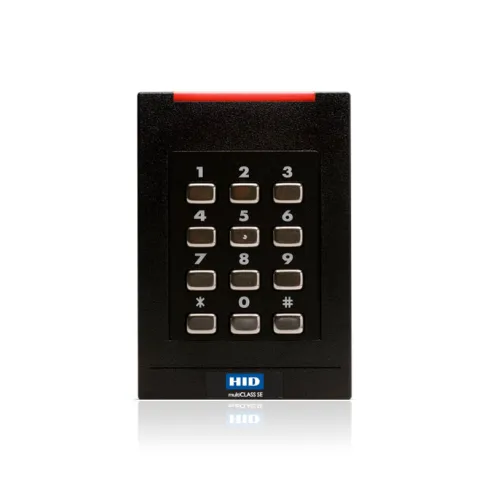

HID® multiCLASS SE® RPK40

The multiCLASS SE® RPK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, multiCLASS SE® RPK40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.

Feature & Specification

Access Control Reader Contactless Smart Card Reader - Wall Switch Keypad 1 ~blog/2022/6/17/rpk40

Features
Specification

Features

> Adaptable - Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
> Powerfully Secure - The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
> Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Specification

• Typical Read Range : 13.56 MHz Single Technology ID-1 Cards: iCLASS Seos: iCLASS Seos: 0.8" (2 cm), iCLASS: 4.7" (12 cm), MIFARE Classic: 4.3" (11 cm), MIFARE DESFire EV1/EV2 1.6" (4 cm); 13.56 MHz Single Technology Tags/Fobs: iCLASS: 2.8" (7 cm), MIFARE Classic: 1.6" (4 cm); 125 kHz Single Technology ID-1 Cards: HID Prox: 2.8" (7 cm), Indala Prox: 2.0" (5 cm), EM4102 Prox: 3.1" (8 cm); 125 KHz Single Technology Tags/Fobs: HID Prox: 1.6" (4 cm), Indala Prox: 1.2" (3 cm), EM4102 Prox: 2.4" (6 cm)
• Mounting : Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing
• Mounting Spacer : To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers
• Color : Black
• Keypad : Yes (4x3)
• Dimensions : 8.5 cm x 12.2 cm x 2.8 cm
• Product Weight (Pigtail) : 9.1oz (258g)
• Product Weight (Terminal Strip) : 8.0oz (228g)
• Operating Voltage Range : 5-16 VDC, Linear supply recommended
• Current Draw - Standard Power Mode (mA) : 95
• Current Draw - Intelligent Power Management (IPM) Mode (mA) : 70
• Peak Current Draw - Standard Power or IPM Mode (mA) : 200
• NSC Power Consumption - Standard Power Mode (mA) : 1.5
• NSC Power Consumption - w/ IPM (mA) : 1.1
• Operating Temperature : -31˚ to 150˚ F (-35˚ to 65˚ C)
• Storage Temperature : -67˚ to 185˚ F (-55˚ to 85˚ C)
• Operating Humidity : 5% to 95% relative humidity non-condensing
• Environmental Rating : Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
• Transmit Frequency : 13.56 MHz & 125 kHz
• 13.56 MHz Card Compatibility : Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™ CSN, CEPAS CSN or CAN - MIFARE DESFire EV2 via EV1 backward compatibility
• 125 kHz Card Compatibility : HID Prox, AWID, Indala, EM4102
• Communications : Optional OSDP with SCP over RS485 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results
