Intelligent IP Multi-smartcard Access Control Device | Access Control Reader

Intelligent IP Multi-smartcard Access Control Device

XPass S2

XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.

Feature & Specification

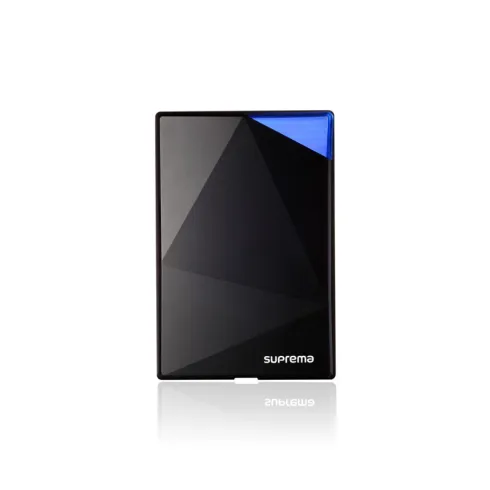

Access Control Reader Intelligent IP Multi-smartcard Access Control Device 1 ~blog/2022/6/20/xs21

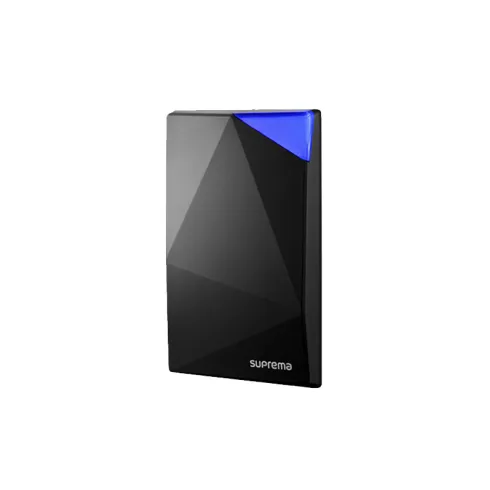

Access Control Reader Intelligent IP Multi-smartcard Access Control Device 2 ~blog/2022/6/20/xs22

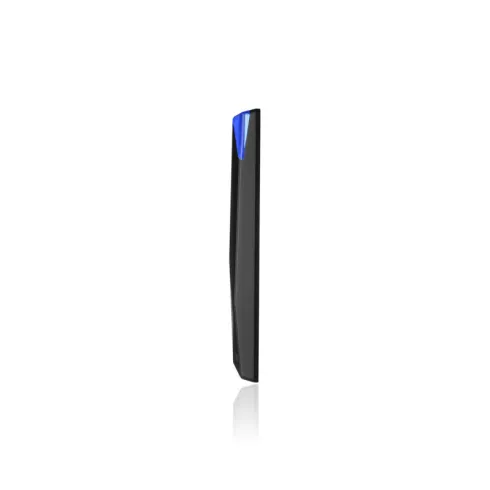

Access Control Reader Intelligent IP Multi-smartcard Access Control Device 3 ~blog/2022/6/20/xs23

Features
Specification

Features

> Multi-Smartcard Reader : The XPass S2 has an innovative multi-smartcard support. This new feature gives XPass S2 the ability to read multiple formats from Mifare, DesFire, ISO14443A, ISO15693, to Felica.
> Ultra Slim Body with Minimalistic Design : XPass S2’s profile is only 11.4mm thick, creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, XPass S2 allows for quick and easy installations.
> IP65-rated Dust & Waterproof structure : With IP65, XPass S2 is tightly sealed against invasive moisture, dust and liquid. This protection is achieved by Suprema's protective engineering which ensures that XPass S2 remains reliable and functioning in all types of environments.
> Adaptive Temperature Control : Adaptive temperature control will allow XPass S2 to operate in extreme cold temperatures as well as extreme hot environments. (Operational temperature -35°C to 65°C)

Specification

• RF Card : 13.56MHz ISO14443A/B, ISO15693, Mifare, Desﬁre(CSN), Felica
• User Capacity : 50,000
• Log Capacity : 100,000
• Network Interfaces : TCP/IP, RS485
• Wiegand : In or Out (Switchable)
• TTL I/O : 2 x Input
• Relay : 1 x Output
• CPU : 32-bit Microprocessor (533Mhz)
• Memory : 16MB Flash + 16MB SDRAM
• Indicator : Multi-color LED
• Sound : Multi-tone Buzzer
• Ingress Protection : IP65
• Operating Temperature : -35˚C - 65˚C
• Tamper : Optical Tamper
• Operating Voltage : 12V DC (Max. 300mA)
• Dimensions (mm) : 80(W) x 120(H) x 11.4(D)
