tSec Mini RFID Card Reader
PRX-TSEC-MINI
The tSec Mini Reader provides a complete multitechnology smart card RFID solution. Compatible with all Wiegand capable control systems and incorporating RS-485 communication, tSec Readers allow rapid deployment of secure technology in any environment.
Feature & Specification

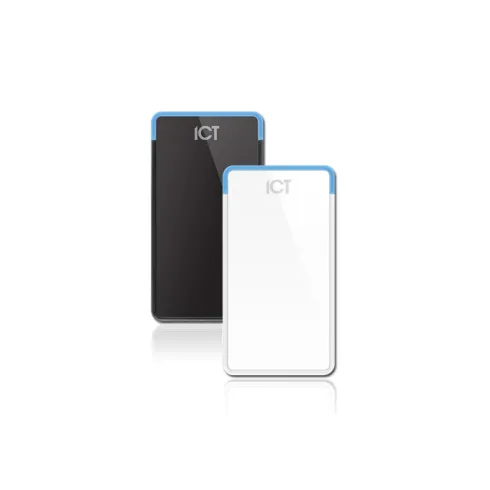

Access Control Reader tSec Mini RFID Card Reader 1 ~blog/2022/6/17/mini

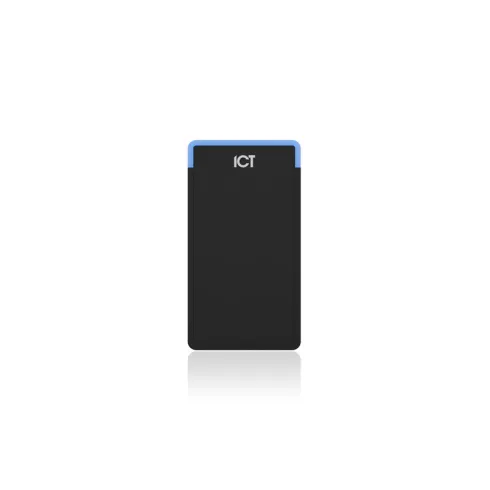

Access Control Reader tSec Mini RFID Card Reader 2 ~blog/2022/6/17/mini1

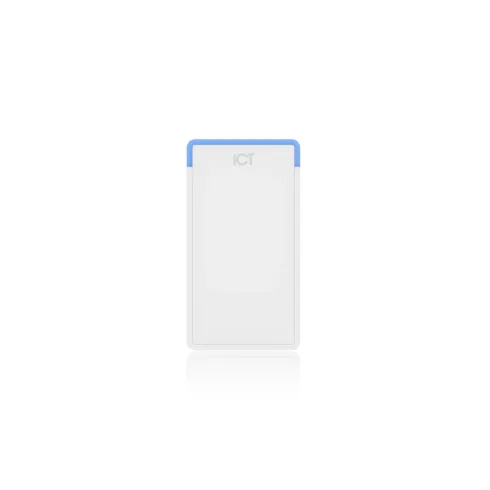

Access Control Reader tSec Mini RFID Card Reader 3 ~blog/2022/6/17/mini2
  • Features
  • Specification

    • Specification

    • Operating Voltage : 12VDC (9.5 to 14VDC)
    • Operating Current : 203mA (Peak, Reading)
    • Card Read Range : MIFARE 60mm (2.36"), DESFire EV1 ISO 15mm (0.6"), 125kHz Clamshell 40mm (1.57”)
    • Tag Read Range : MIFARE 30mm (1.2"), DESFire EV1 6mm (0.23"), 125kHz 25mm (0.98”)
    • Wiegand Interface : Multiple format 26 or 34 Bit data 0 and data 1, card defined
    • Frequency : 13.56 MHz ISO/IEC 14443 Type A, 125KHz pulse width modulated †
    • Multi Conductor Cable : Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft), Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)
    • OSDP Communication : OSDP standard 2.2 with Secure Channel Protocol
    • Bluetooth® Read Range : Proximity mode: up to 0.5m (1.6ft) Configurable. Action unlock (shake): up to 5m (16.4ft) Configurable
    • Bluetooth® Electronic Credential Transmission Technology : NRF8001 Bluetooth® version 4.0 compliant, Proprietary data exchange protocol. AES128 Encrypted, Reader App Version: 1.04.175 and above, Credentials can be distinguished by unique site code and card number
    • Bluetooth® Wireless Device : Protege Mobile 1.0.x
    • NFC Read Range : Up to 60mm
    • NFC (Near-field communication) electronic credential transmission technology : Android 4.4 or above, with phones which support ISO7816-4, Proprietary Secured DESFire credential, Credential is AES-256 (NIST certified AES algorithm), Reader App Version: 1.04.175 and above, Credentials can be distinguished by unique site code and card number
    • NFC Wireless Device : Protege Mobile 1.0.x
    • Environment IP Rating : IP65
    • Operating Temperature : UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Reader Dimensions (H x W x D) : 85 x 46 x 17mm (3.35 x 1.81 x 0.67”)
    • Net Weight : 80g (2.8oz)
    • Gross Weight : 100g (3.5oz)
