Outdoor IP Fingerprint Device | Biometric Reader

Biometric Reader

Outdoor IP Fingerprint Device

BioEntry W2

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.

Feature & Specification

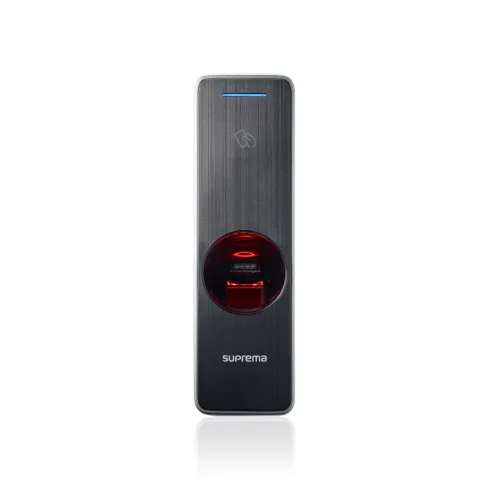

Biometric Reader Outdoor IP Fingerprint Device 1 ~blog/2022/6/7/w21

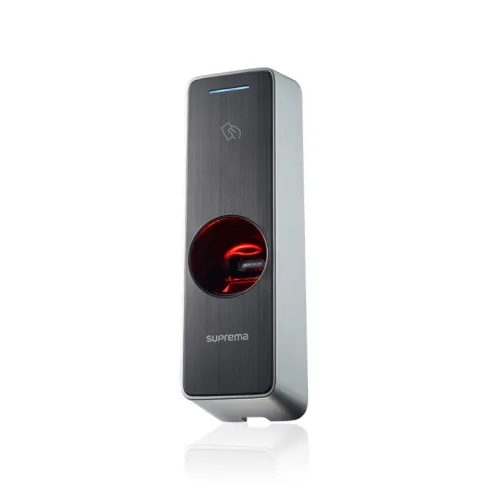

Biometric Reader Outdoor IP Fingerprint Device 2 ~blog/2022/6/7/w22

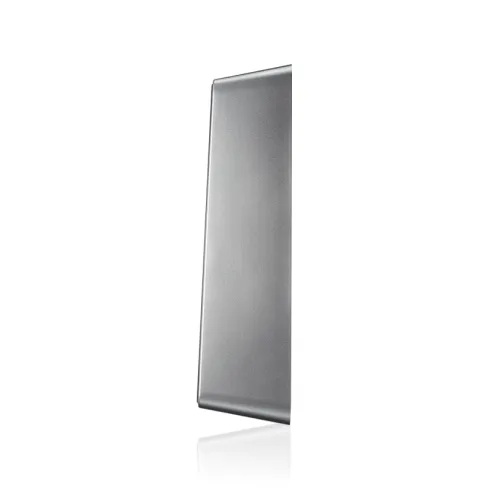

Biometric Reader Outdoor IP Fingerprint Device 3 ~blog/2022/6/7/w23

Features
Specification

Features

> Best-in-class Performance
• Latest Suprema algorithm
• 1.2GHz quad-core CPU
> Improved Accuracy & Security
• New advanced Live Finger Detection(LFD) technique
• High-precision OP5 optical sensor
> Expanded Capacity
• Max. 500k users/1 million text logs
• Large memory: 2GB Flash + 256 MB RAM
> Rugged Structure
• IK09 impact protection
• IP67 ingress protection
• Ideal for outdoor installation
> Multi RFID Card Reading
• LF(125KHz), HF(13.56MHz) dual-band
• Reads all card types that HID multiCLASS supports (EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC)

Specification

• Biometric : Fingerprint
• Sensor Type : Optical Sensor (OP5)
• Template : SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher : MINEX certiﬁed and compliant
• LFD : Supported
• RF Option : BEW2-OHP: 125kHz, HID Prox. BEW2-ODP: 125kHz EM & 13.56Mhz, MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC. BEW2-OAP: 125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR/Seos, NFC
• CPU : 1.2 GHz Quad Core
• Memory : 2GB Flash + 256 MB RAM
• Max. User (1:1) : 500,000 (Based on one ﬁnger enrollment per user)
• Max. User (1:N) : 100,000 (Based on one ﬁnger enrollment per user)
• Max. Finger per user : 10
• Max. Text Log : 1,000,000
• LED : Multi-Color
• Sound : Multi-tone Buzzer
• Ethernet : 10/100 Mbps, auto MDI/MDI-X
• RS-485 : 1ch host or slave (selectable), OSDP V2.1.6
• Wiegand : 1ch input or output (selectable)
• TTL : 2ch input
• Relay : 1 Relay
• PoE : Supported (IEEE 802.3af compliant)
• Ingress Protection : IP67
• Impact Protection : IK09
• Tamper : Supported
• Power : Voltage: DC 12V Current: Max. 600 mA
• Operating Temperature : -20°C ~ 50°C
• Operating Humidity : 0% ~ 80%, non-condensing
• Dimensions (WxHxD, mm) : 50 x 172 x 43.5
