Touch Key Fingerprint Access Control Standalone Terminal | Biometric Reader

Biometric Reader

Touch Key Fingerprint Access Control Standalone Terminal

SI-FP-04

Color screen design for either access control or time attendance management. Features an IP65 certified weatherproof exterior. IP65 protection allows system designers to place the terminal in both indoor and outdoor environments.

Features standard TCP/IP and communication between devices and the server. It also supports Wiegand interfaces to provide maximum versatility. Has optional Power-over-Ethernet for flexible installation. Moreover, it has an in-built user-friendly Web Server.

Feature & Specification

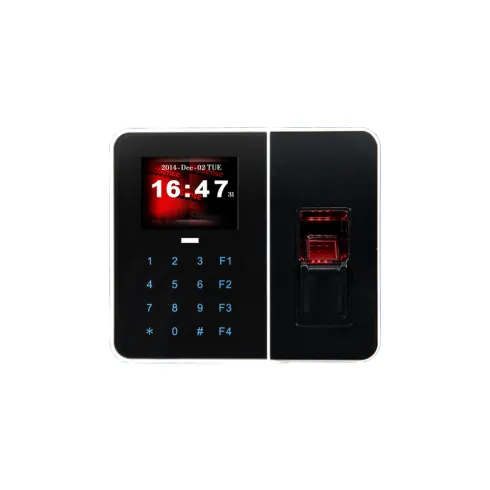

Biometric Reader Touch Key Fingerprint Access Control Standalone Terminal 1 ~blog/2022/6/7/fp041

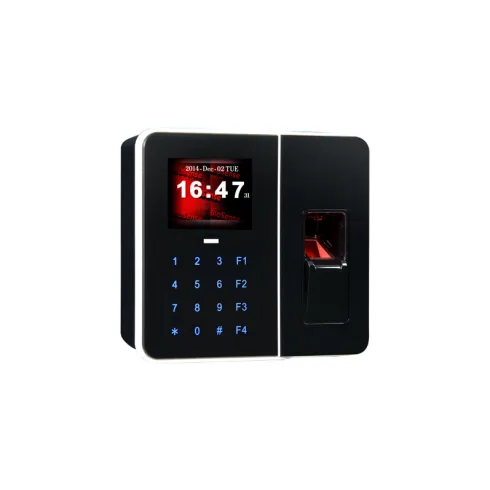

Biometric Reader Touch Key Fingerprint Access Control Standalone Terminal 2 ~blog/2022/6/7/fp042

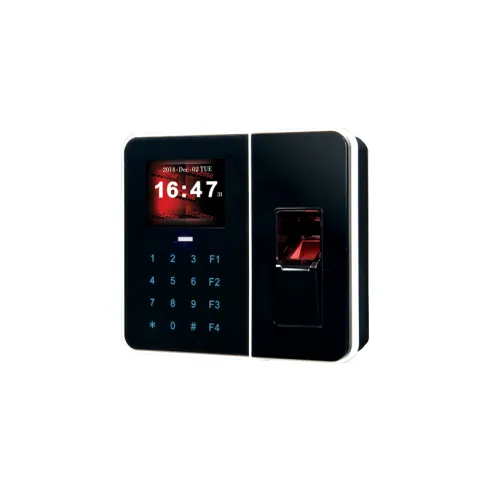

Biometric Reader Touch Key Fingerprint Access Control Standalone Terminal 3 ~blog/2022/6/7/fp043

Features
Specification

Features

> Android mobile NFC
> 400 sets of the function key.
> Anti-pass back / Anti duress.
> Basic Time & Attendance (First IN / Last OUT).
> Color screen with touch keypad.
> LOGs data real-time PUSH.
> Indoor and outdoor use (IP65 certificated).
> Standalone, WEB-Based Management and network capability.
> Support AUTO Get IP (DHCP) for easy setup.

Specification

• Software Application : Software / Browser / APP
• Verification Mode : Fingerprint / Card / PIN
• Proximity : EM / Mifare / HID
• Fingerprint Template Capacity : 9,590
• Fingerprint Sensor Type : Optical
• Fingerprint Sensor Resolution : 500 dpi
• 1:1 Verification Time : < 600 msec
• 1:1,000 Identification Time : < 760 msec
• User Capacity : 20,000
• Function Keys : 400 SET
• Time Sets / Time Zones / Group : 255 / 120 / 255 SET
• Holiday Dates : 100 SET
• Access & Event Logs / System Logs : 65536 / 1536
• Inputs : 3 Inputs, (1) Exit button (2) Door Sensor (3) Fire Alarm
• Relay Outputs : 1 output for Lock (COM/NO/NC)
• Web Base Management : Yes
• Support real time log PUSH methodology : Yes
• Wiegand Inputs : 26/34 bits Wiegand reader
• Wiegand Outputs : 26/34 bits Wiegand reader
• IP Mode : Static IP / AUTO IP (DHCP Client)
• LED Indicators : Blue / Green / Red LED
• Speaker: Indication : Optional
• Buzzer : Single Tone
• TFT Color LCD : 2.8"
• Capacitive Touch Keys : 4 x 4
• Anti-Tampering Switch : Yes
