Prox Booster - Long-range Vehicle & Driver Identification Tag
9948538 / 9948546
The Prox Booster is a vehicle and driver identification tag. This patented solution ensures that a vehicle can only get access to a secured area when driven by an authorized driver. The Prox Booster is used in combination with (existing) personal access credentials. Based on semi active RFID technology (2,45 GHz), the Prox Booster is identified up to 10 meters (33 feet) with the TRANSIT Ultimate or TRANSIT Standard reader.
Feature & Specification
Card & Credential Prox Booster - Long-range Vehicle & Driver Identification Tag 1 ~blog/2022/6/15/booster1
Card & Credential Prox Booster - Long-range Vehicle & Driver Identification Tag 2 ~blog/2022/6/15/booster2
Card & Credential Prox Booster - Long-range Vehicle & Driver Identification Tag 3 ~blog/2022/6/15/booster3
  • Features
  • Specification

    • Specification

    • Part number : 9948538 Prox-Booster 2G, 9948546 Prox-Booster 2G Single ID
    • Dimensions : 111 x 65 x 28 mm (4.4 x 2.6 x 1.1 in)
    • Color : RAL 7016 (housing), RAL 7035 (edge)
    • Weight : 110 g (3.9 oz)
    • Protection class : IP32 (approx. NEMA 2)
    • Material : PC and TPU
    • Operating temperature : -40 ... +85°C (-40 … +185°F)
    • Storage temperature : -40 ... +85°C (-40 … +185°F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : 10 meters (33 ft) with TRANSIT Ultimate or TRANSIT Standard, 4 meters (12 ft) with TRANSIT Entry
    • Operating frequency : 120 KHz / 2.45 GHz
    • Operating modes : RO-C = read-only, switch button activation, RO-A = read-only, always on (not available for Prox-Booster 2G Single ID)
    • Supported prox cards (120-125 kHz cards) : Nedap, EM4200 or compatible, HID-PROX up to 40 bits (HID Interface Board required in TRANSIT reader)
    • Air interface : Nedap proprietary encoding standard
    • Battery : User replaceable alkaline AAA batteries (x2) with expected lifetime of 5 years. Life time expectation is based on: Average warm climate conditions (exposure to extreme hot conditions might reduce battery life) and default operating mode C.

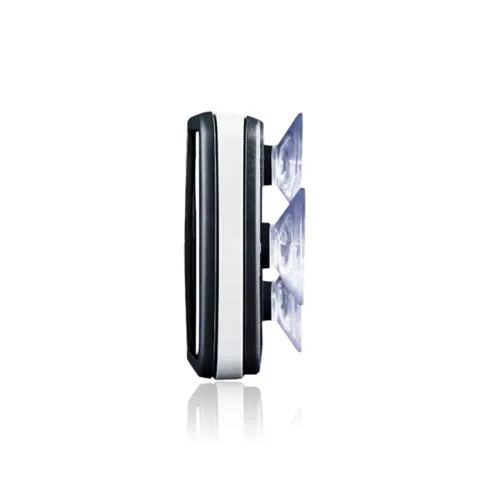

    • Mounting : Attaches with a suction pad to the inside of all normal windscreens*. *In case of a metalized windscreen, please contact your Nedap representative.
    • Compatible readers : 9215689 TRANSIT Ultimate, 9990410 TRANSIT Standard, 9875220 TRANSIT Standard USA, 9876200 TRANSIT Entry
