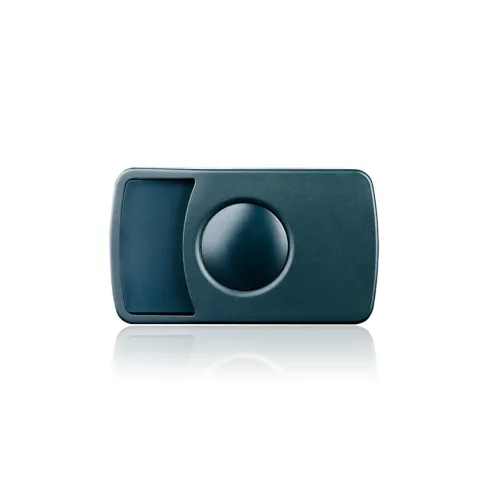

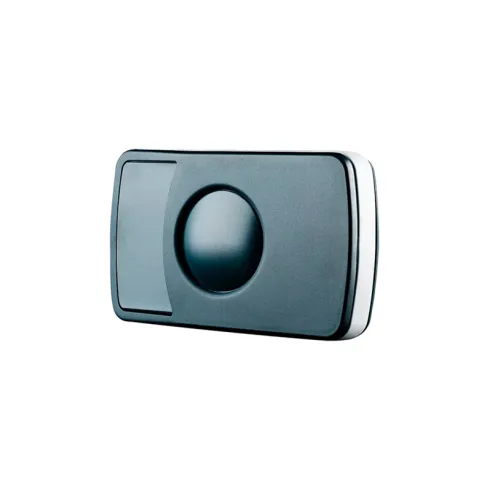

Smartcard Booster Ultimate - Long-range Vehicle & Driver Identification Tag
9982809
The Smartcard Booster Ultimate is a vehicle and driver identification tag. This patented solution ensures that a vehicle can only get access to a secured area when driven by an authorized driver. The Smartcard Booster Ultimate is used in combination with (existing) personal access credentials. Based on semi active RFID technology (2,45 GHz), the Smartcard Booster Ultimate is identified up to 10 meters (33 feet) the TRANSIT Ultimate or TRANSIT Standard reader.
Feature & Specification
Card & Credential Smartcard Booster Ultimate - Long-range Vehicle & Driver Identification Tag 1 ~blog/2022/6/15/booster1
Card & Credential Smartcard Booster Ultimate - Long-range Vehicle & Driver Identification Tag 2 ~blog/2022/6/15/booster2
Card & Credential Smartcard Booster Ultimate - Long-range Vehicle & Driver Identification Tag 3 ~blog/2022/6/15/booster3
  • Features
  • Specification

    • Specification

    • Dimensions : 111 x 65 x 28 mm (4.4 x 2.6 x 1.1 in)
    • Color : RAL 7016 (housing), RAL 7035 (edge)
    • Weight : 110 g (3.9 oz)
    • Protection class : IP32 (approx. NEMA 2)
    • Material : PC and TPU
    • Operating temperature : -40 ... +85°C (-40…+185°F)
    • Storage temperature : -40 ... +85°C (-40 … +185°F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : Up to 10 meters [33 feet] with TRANSIT Ultimate; message acceptance ratio > 80%
    • Operating frequency : 2.45 GHz / 120 KHz / 13.56 MHz / 433 MHz
    • Operating modes : RO-C = read-only, switch button activation
    • Authentication : AES128
    • Supported smartcards (13.56 MHZ) : MIFARE Classic, MIFARE Ultralight, MIFARE DESFire (EV1), ISO 14443-3A CSN, ISO 15693 UID (LEGIC Advant), HID iCLASS CSN, Calypso PUPI and free files
    • Air interface : AES128 encryption with diversified keys; 300kbps/ GFSK 75 kHz, Duty cycle < 1%; LBT not applicable, Nedap proprietary encoding standard
    • Battery : User replaceable alkaline AAA batteries (x2) with expected lifetime of 5 years. Life time expectation is based on: Average warm climate conditions (exposure to extreme hot conditions might reduce battery life). 2.6V < Vbat < 3.3V max. 0.12A; Battery low beeper when Vbat < 2.6V

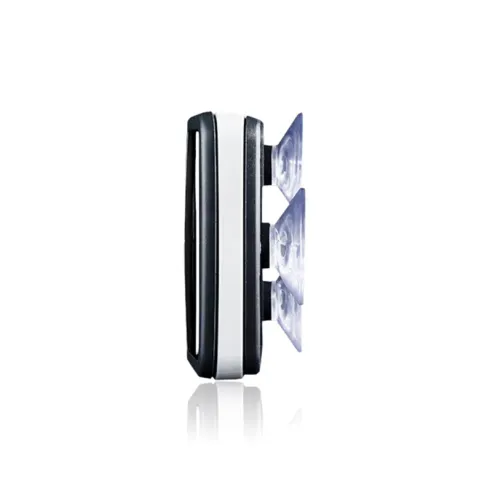

    • Mounting : Attaches with a suction pad to the inside of all normal windscreens*. *In case of a metalized windscreen, please contact your Nedap representative.
    • Compatible readers : 9215689 TRANSIT Ultimate
