Card & Credential UHF Exterior Tag - Long-range Vehicle Identification Tag ENID
Home /
Card & Credential
UHF Exterior Tag - Long-range Vehicle Identification Tag
9215255

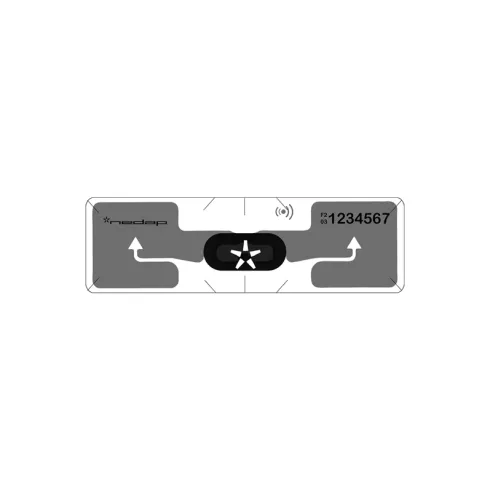

The UHF Exterior Tag is a vehicle identification tag. The tag is mounted on the exterior of a vehicle, offering cost effective long-range identification for parking applications. Based on passive UHF technology (± 900 MHz), the UHF Exterior Tag is identified up to 10 meters (33 ft) with uPASS Target or 5 meters (16 ft) with uPASS Reach. The tag does not contain a battery and is maintenance free.
Feature & Specification
Card & Credential UHF Exterior Tag - Long-range Vehicle Identification Tag 1 ~blog/2022/6/15/extag
  • Features
  • Specification

    • Specification

    • Dimensions : 97 x 27 mm (3.82 x 1.06 in)
    • Color : Transparent, interior is visible
    • Weight : 1 g (0.04 lbs)
    • Protection class : IP65 (approx. NEMA 4x)
    • Material : Polyester
    • Operating temperature : -20 ... +70°C (-4 … +158°F)
    • Storage temperature : -20 ... +70°C (-4 … +158°F)
    • Relative humidity : 10% ... 93% relative humidity, non-condensing
    • Read range : up to 10 meters (33 feet) with uPASS Target, up to 5 meters (16 feet) with Upass Reach
    • Operating frequency : 865 - 870 MHz / 902 - 928 MHz
    • Mounting : Onto the non-metal / metal containing exterior parts of the vehicle, preferably the headlight.
    • Compatible readers : 9217363 uPASS Target (region 1), 9217371 uPASS Target (region 2&3), 9942319 uPASS Reach (region 1), 9945466 uPASS Reach (region 2&3)
