UHF Heavy Duty Tag - Long-range Vehicle Identification Tag
9219641

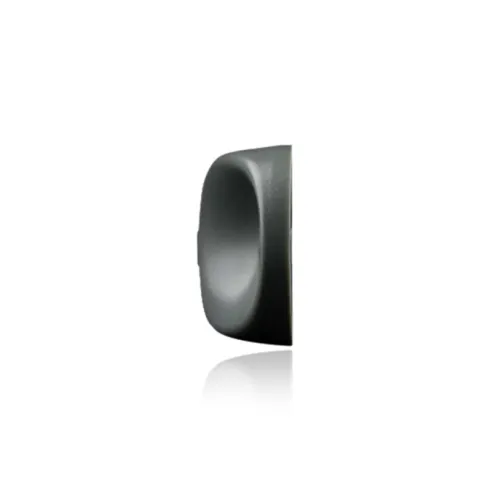

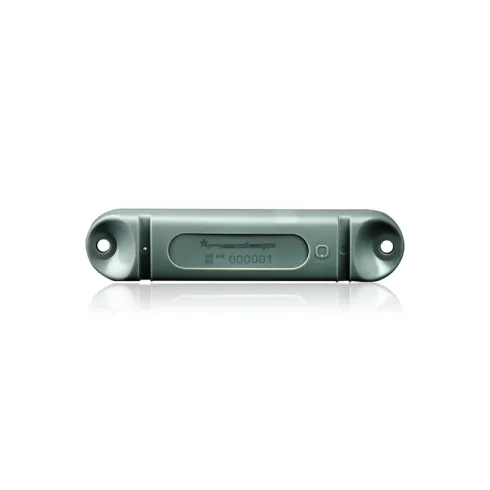

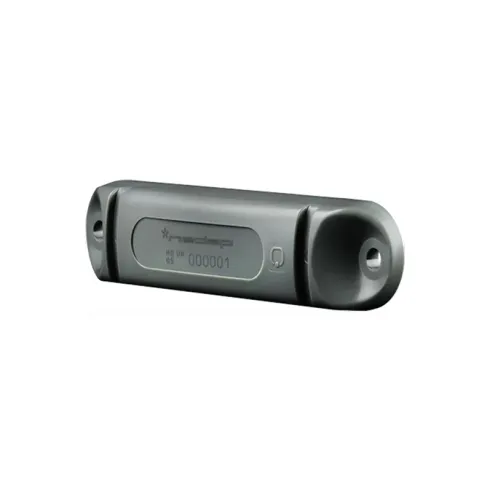

The UHF Heavy Duty Tag is a vehicle identification tag. This tag features a rugged design for long term outdoor use in industrial environments. The UHF Heavy Duty Tag is a cost effective solution for installations that require the tag to be mounted onto the exterior of the vehicle. Based on passive UHF technology (± 900 MHz), the UHF Heavy Duty Tag is identified up to 10 meters (33 feet) with uPASS Target or 5 meters (16 feet) with uPASS Reach.
Feature & Specification
Card & Credential UHF Heavy Duty Tag - Long-range Vehicle Identification Tag 1 ~blog/2022/6/15/hdtag1
Card & Credential UHF Heavy Duty Tag - Long-range Vehicle Identification Tag 2 ~blog/2022/6/15/hdtag2
Card & Credential UHF Heavy Duty Tag - Long-range Vehicle Identification Tag 3 ~blog/2022/6/15/hdtag3
  • Features
  • Specification

    • Specification

    • Dimensions : 110 x 25 x 12,85 mm (4.33 x 0.98 x 0.51 in)
    • Color : Grey
    • Weight : 26 g [0.92 oz]
    • Protection class : IP68
    • Material : ABS rigid plastic
    • Operating temperature : -20 ... +85°C (-4 … +185°F)
    • Storage temperature : -20 ... +85°C (-4 … +185°F)
    • Relative humidity : 10% ... 93% relative humidity, non-condensing
    • Read range : up to 10 meters (33 feet) with uPASS Target, up to 5 meters (16 feet) with uPASS Reach
    • Operating frequency : 865 - 870 MHz / 902 - 928 MHz
    • Mounting : Onto the exterior of the vehicle using M5 screws. Fixation hole: 4,9 mm (0.19 in) / Screw center to center distance: 97,5 mm (3.84 in)
    • Compatible readers : 9217363 uPASS Target (region 1), 9217371 uPASS Target (region 2&3), 9942319 uPASS Reach (region 1), 9945466 uPASS Reach (region 2&3)
