Contactless Smart Card Reader – Long Range

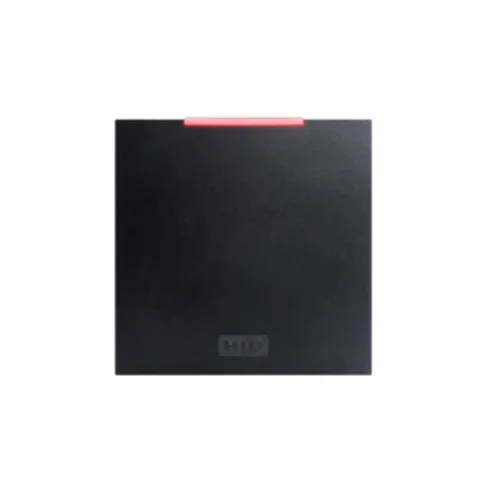

HID® iCLASS SE® R90

iCLASS SE® R90 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for vehicle access applications requiring extended read range, iCLASS SE® R90 supports a broad array of credential technologies and a variety of form factors, including cards and fobs.

Feature & Specification

Long Range Reader Contactless Smart Card Reader – Long Range 1 ~blog/2022/6/6/r90

Features
Specification

Features

> Adaptable – Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors.
> Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
> Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Specification

• Typical Read Range : ID-1 Cards= iCLASS Seos: 4.7" (12 cm) iCLASS: 14.2" (36 cm) MIFARE Classic: 9.4" (24 cm) MIFARE DESFire EV1/EV2: 5.9" (15 cm); Tags/Fobs= iCLASS: 6.7" (17 cm) MIFARE Classic: 3.1" (8 cm)
• Mounting : Metal gooseneck pedestal, without a metal back plate. See Installation Guide for details.
• Mounting Spacer : Refer to installation guide
• Color : Black
• Dimensions : 13.1" x 13.1" x 1.55" (33.3 x 33.3 x 3.9cm)
• Product Weight (Terminal Strip) : 4lb 1oz (1844g)
• Operating Voltage Range : 12 VDC or 24 VDC
• Current Draw - Standard Power Mode (mA) : 110 @ 12V
• Current Draw - Intelligent Power Management (IPM) Mode (mA) : 30 @ 12V
• Peak Current Draw - Standard Power or IPM Mode (mA) : 300 @ 12V
• NSC Power Consumption - Standard Power Mode : 1.3 @ 12V
• NSC Power Consumption - w/ IPM : 0.4 @ 12V
• Operating Temperature : -31˚ to 150 ˚ F (-35 ˚ to 65 ˚ C)
• Storage Temperature : -67 ˚ to 185 ˚ F (-55 ˚ to 85 ˚ C)
• Operating Humidity : 5% to 95% relative humidity non-condensing
• Environmental Rating : IP65
• Transmit Frequency : 13.56 MHz
• 13.56 MHz Card Compatibility : Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default); MIFARE Classic and MIFARE DESFire EV1 custom data models; standard iCLASS Access Control Application (order with Standard interpreter); ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN; FeliCa™ CSN, CEPAS CSN or CAN; MIFARE DESFire EV2 via EV1 backward compatibility
• Communications : Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
