Long Range Reader
Contactless Smart Card Reader – UHF Long Range

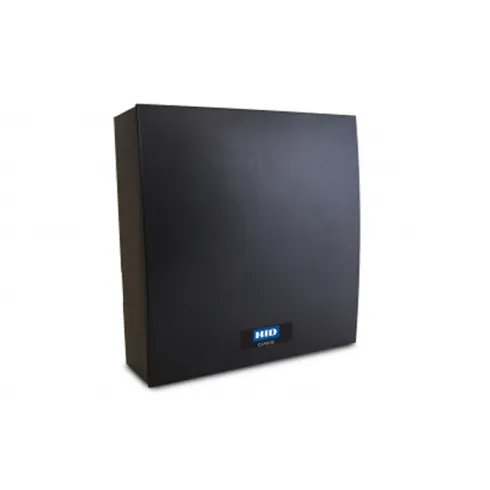

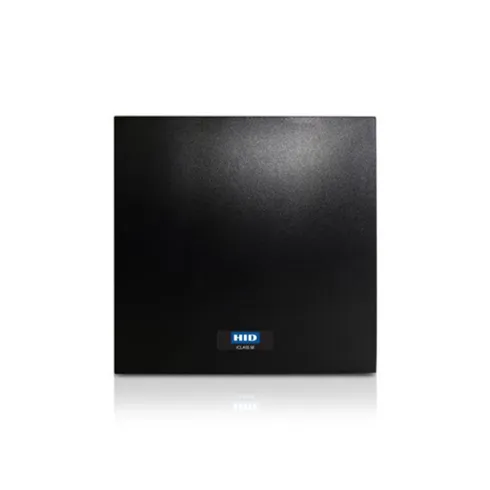

HID® iCLASS SE® U90
HID Global's iCLASS SE® U90 Long Range Reader offers an extended range solution for parking and gate control. The iCLASS SE® U90 Long Range Reader features advanced encryption technology, delivering the most secure ultra-high frequency (UHF) access control on the market. With a read range of up to five meters, iCLASS SE® U90 can securely read both single UHF and support a mixed UHF/iCLASS credential migration population. The ability to combine building access with parking and gate control on a single card or fob offers both convenience and security.
Feature & Specification
Long Range Reader Contactless Smart Card Reader – UHF Long Range 1 ~blog/2022/6/6/u901
Long Range Reader Contactless Smart Card Reader – UHF Long Range 2 ~blog/2022/6/6/u902
  • Features
  • Specification

    • Specification

    • Transmit Frequency : 865 - 868 MHz / 902 - 928 MHz dependent on regional regulations
    • Typical Maximum Read Range : Up to 5 meters - depends on Installation conditions and vehicle windshield specification
    • Input Voltage (VDC) : 12VDC or 24VDC
    • Current : Standby Avg: 320mA @ 12VDC /160mA @ 24VDC; Max AVG: 400mA @ 12VDC 200mA @ 24VDC; PEAK 1.0A @ 12VDC 0,5A @ 24VDC
    • Cable Length : Wiegand: 500 ft (152 m) – 22 AWG, 300 ft (91 m) – 24 AWG; RS-485: 4000 ft (1,219 m) – 24 AWG
    • Dimensions : 9.10" x 9.10" x 2.75" (23.1 x 23.1 x 7.0 cm)
    • Color : Black
    • Housing Material : UL94 Polycarbonate
    • Mounting : Drill mounting box to meet application. Drill points provided for US and EU wall boxes and 75 mm, 100 mm, 200 mm VESA mounts.
    • Storage Temperature : -67° to 185° F (-55° to 85° C)
    • Operating Temperature : -30° to 150° F (-35° to 65° C)
    • Operating Humidity : 5% to 95% relative humidity non-condensing
    • Environmental Rating : IP65
