Long-range UHF Reader for Vehicle Identification
uPASS Reach
The uPASS Reach is a UHF RFID reader for long-range vehicle identification. Based passive UHF technology (± 900 MHz), vehicles are identified up to 5 meters (16,4 feet). The uPASS Reach complies with the ISO18000-6C and EPC global Gen 2 directive.
Feature & Specification

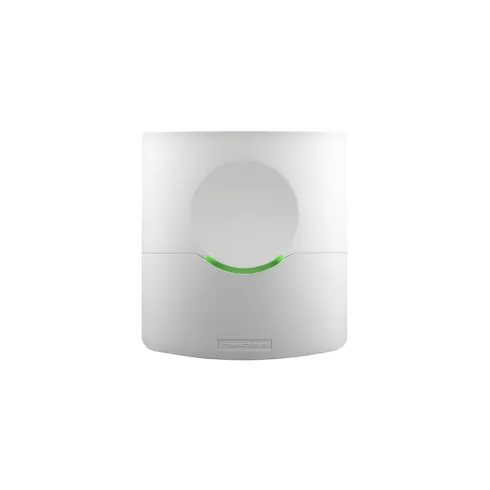

Long Range Reader Long-range UHF Reader for Vehicle Identification 1 ~blog/2022/6/6/reach1

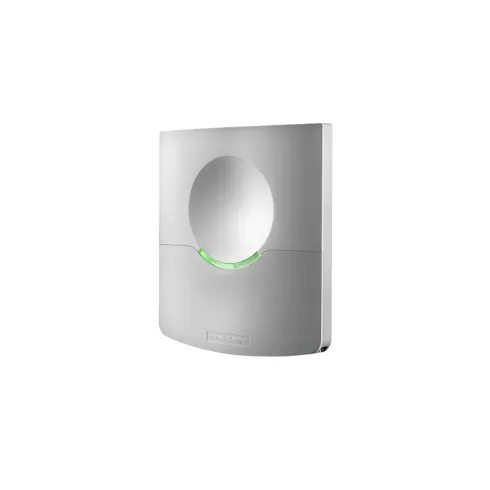

Long Range Reader Long-range UHF Reader for Vehicle Identification 2 ~blog/2022/6/6/reach2

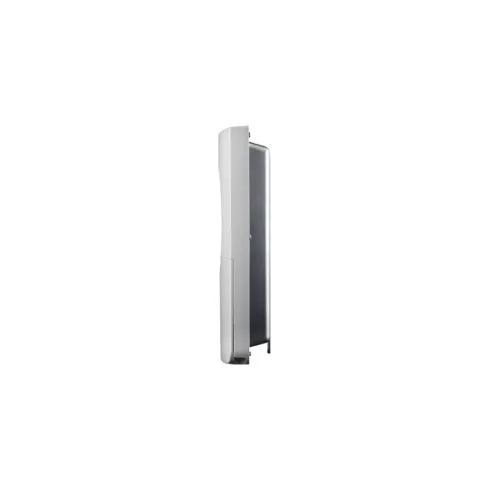

Long Range Reader Long-range UHF Reader for Vehicle Identification 3 ~blog/2022/6/6/reach3
  • Features
  • Specification

    • Specification

    • Dimensions : 200 x 220 x 45 mm (7.9 x 8.7 x 1.8 in.)
    • Color : RAL 7035, aluminium chassis
    • Weight : 0,75 kg (1.65 lbs)
    • Protection class : IP65 (approx.NEMA4x)
    • Material : Aluminium chassis with UL94 ABS cover
    • Operating temperature : -30...+60°C (-22...+140°F)
    • Storage temperature : -30...+60°C (-22...+140°F)
    • Relative humidity : 10% ... 93% relative humidity, non-condensing
    • Power supply : 12...24 VDC +10% linear supply recommended
    • Power consumption : 1A @12VDC, 0.5@24VDC
    • Read range : Up to 5 meters (16,4 feet) with passive Nedap UHF tags
    • Operating frequency : 865-868 MHz uPASS Reach Region 1; 902-928 MHz uPASS Reach Region 2&3
    • Antenna polarization : Horizontal
    • Air interface : According to ISO 18000-6 C; EPC Gen 2
    • Communication interfaces : RS232, RS422 and USB service interface
    • Communication protocols : OSDP, CR/LF, DC2/DC4 and various OEM protocols (see uPASS firmware guide for more information)
    • Relay output : 1 relay output (NO, common, NC), 24 VDC 2A
    • Input : Read disable input; 3 x TTL general purpose inputs
    • Output : Wiegand, Magstripe (clock & data)
    • Cable specifications : Wiegand - 150 m (500 ft.) 22AWG
    • Tamper switch : Magnetic switch, normally closed
