High-performance Smart Card Reader with a USB Interface

HID® OMNIKEY® 3021 USB

HID Global, with its product brand OMNIKEY one of the world's leading manufacturers of innovative smart card readers, offers with the OMNIKEY® 3021 USB a high-performance smart card reader in a small form factor for desktop as well as mobile usage. The OMNIKEY® 3021 is an easy-to-install USB device suited for all contact smart card operations like online-banking or digital signature applications.

Feature & Specification

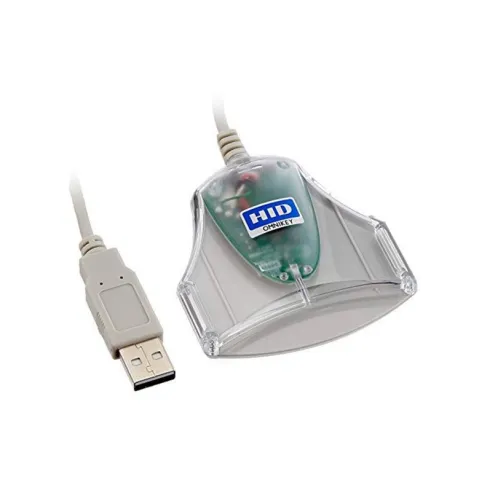

Omnikey Reader High-performance Smart Card Reader with a USB Interface 1 ~blog/2022/6/6/30211

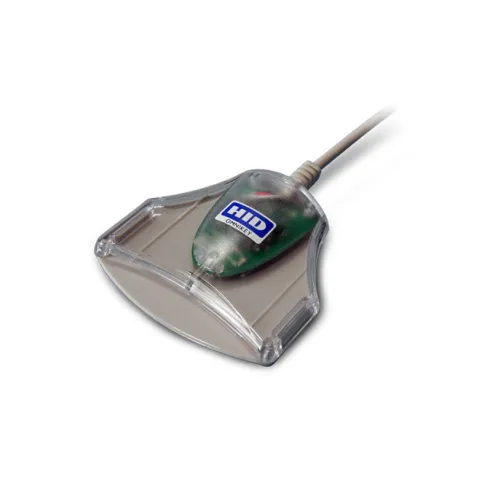

Omnikey Reader High-performance Smart Card Reader with a USB Interface 2 ~blog/2022/6/6/30212

Features
Specification

Features

> Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.
> Readily Compliant – Meets all relevant industry standards for smooth integration in PC environment.
> Portable Form Factor – Unique size makes it an ideal reader for large-scale deployments and mass distribution.
> Suits Any Application – Compatible with virtually any smart card and major PC operating system.

Specification

• Card Size : ID-1 (Full size)
• Standards : ISO 7816
• Supported Card Types : Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; Class C: 1.8V @35 mA, ATR response time up to 1.6 s
• Protocols : Asynchronous: T=0; T=1, Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire)
• Insertion Cycles : 100,000
• Smart Card Interface Speed : 420 kbps
• Smart Card Clock Frequency : up to 12 MHz
• Smart Card detection : Movement detection with auto power-off; Automatic detection of smart card type; Short circuit and thermal protection
• 8-Pin Handling : C4 / C8 supported
• USB Interface : USB 2.0 Full Speed Device (12 MBps), USB 3.0 extended operability, tested with hubs/controllers
• Connector / Cable : USB Type A connector; 59.1" (150 cm) cable
• Operating Systems : Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2, Windows CE (5/6/7) depending on hardware, Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+, Mac OS X; AndroidTM
• Driver : CCID native driver from operating system
• Supported APIs : PC/SC - API
• Status indicator : Blue LED
• Housing : Transparent / grey polycarbonate
• Dimensions : 2.91" x 2.52" x 0.51" (74 x 64 x 13 mm)
• Weight : 1.69 oz (48g)
• Operating Temperature : 32-131 F (0-55°C)
• Operating Humidity : 10-90% rH
• Storage Temperature : -4 - 176 F (-20 - 80°C)
• Meantime Between Failure (MTBF) : 500.000 hours
