USB Connected Smart Card Reader for Desktop Use

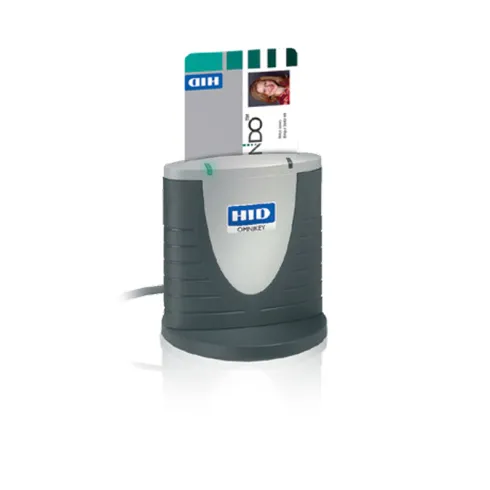

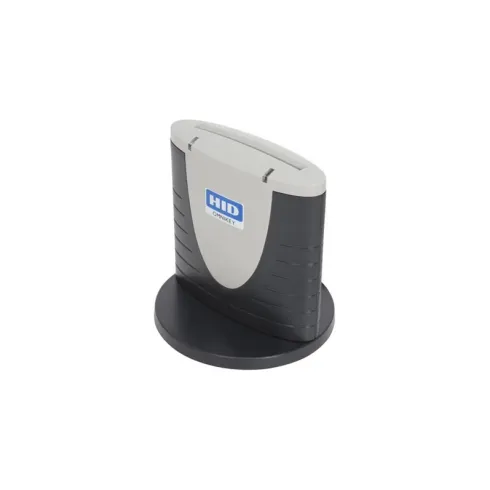

HID® OMNIKEY® 3121 USB

HID Global, with its product brand OMNIKEY one of the world's leading manufacturers of innovative smart card readers, offers with the OMNIKEY® 3121 a high-performance smart card reader USB connected for desktop use with multiple standing options in a robust housing. The OMNIKEY® 3121 is an easy-to-install USB card reader suited for all contact smart card operations like online-banking or digital signature applications.

Feature & Specification

Omnikey Reader USB Connected Smart Card Reader for Desktop Use 1 ~blog/2022/6/6/31211

Omnikey Reader USB Connected Smart Card Reader for Desktop Use 2 ~blog/2022/6/6/30212

Omnikey Reader USB Connected Smart Card Reader for Desktop Use 3 ~blog/2022/6/6/31211

Features
Specification

Features

> Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.
> Readily Compliant – Meets all relevant industry standards for smooth integration in PC environment
> Convenient and Reliable – Multiple-base mounting options, robust housing, long USB cable
> Suits Any Application – Compatible with virtually any smart card and major PC operating system

Specification

• Card Size : ID-1 (Full size)
• Standards : ISO 7816
• Supported Card Types : Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; Class C: 1.8V @35 mA, ATR response time up to 1.6 s
• Protocols : Asynchronous: T=0; T=1, Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire)
• Insertion Cycles : 100,000
• Smart Card Interface Speed : 420 kbps
• Smart Card Clock Frequency : up to 12 MHz
• Smart Card detection : Movement detection with auto power-off; Automatic detection of smart card type; Short circuit and thermal protection
• 8-Pin Handling : C4 / C8 supported
• USB Interface : USB 2.0 Full Speed Device (12 MBps), USB 3.0 extended operability, tested with hubs/controllers
• Connector / Cable : USB Type A connector; 59.1" (150 cm) cable
• Operating Systems : Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2, Windows CE (5/6/7) depending on hardware, Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+, Mac OS X; AndroidTM
• Driver : CCID native driver from operating system
• Supported APIs : PC/SC - API
• Status indicator : Dual-color LED (green & red)
• Housing : Two-tone grey, ABS plastics
• Dimensions : 3.15" x 2.64" x 1.1" (80 x 67 x 28 mm)
• Weight : Reader only 3.88 oz (110g); Standard standing base 1.09 oz (31g)
• Operating Temperature : 32-131 F (0-55°C)
• Operating Humidity : 10-90% rH
• Storage Temperature : -4 - 176 F (-20 - 80°C)
• Meantime Between Failure (MTBF) : 500.000 hours
