Biometric Reader Fingerprint IP Access Terminal ENID
Home /
Biometric Reader
Fingerprint IP Access Terminal

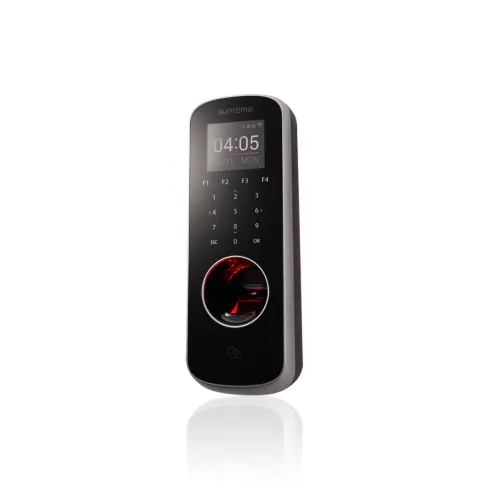

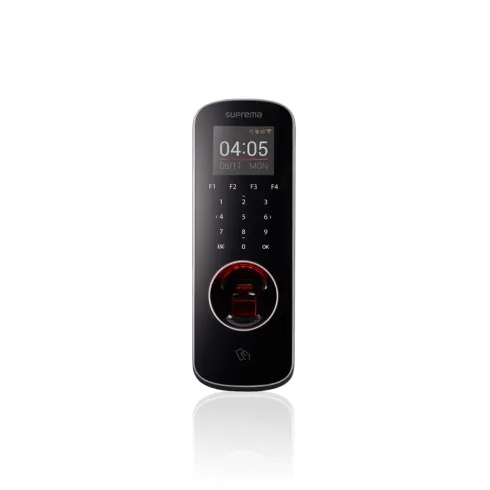

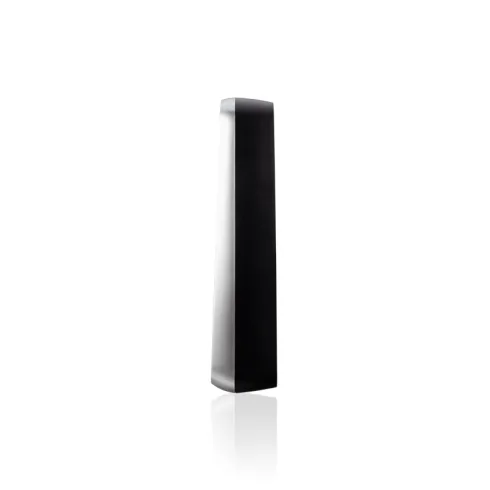

BioStation L2
Suprema BioStation L2 is an essential fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s next generation biometric technology and security platform. Designed for all type of time-attendance applications, BioStation L2 provides exceptional value by combining World’s best Suprema fingerprint algorithm, high performance and enhanced security features.
Feature & Specification
Biometric Reader Fingerprint IP Access Terminal 1 ~blog/2022/6/7/l21
Biometric Reader Fingerprint IP Access Terminal 2 ~blog/2022/6/7/l22
Biometric Reader Fingerprint IP Access Terminal 3 ~blog/2022/6/7/l23
  • Features
  • Specification

    • Specification

    • Biometric : Fingerprint
    • Template : SUPREMA/ISO 19794-2/ANSI 378
    • Extractor / Matcher : MINEX certified and compliant
    • LFD : Supported
    • RF Option : 125 KHz EM & 13.56 MHz Mifare,DESFire EV1/EV2*, FeliCa, NFC
    • CPU : 1.2 GHz Quad-Core
    • Memory : 2GB Flash + 256 MB RAM
    • Max. User : 500,000 (1:1), 100,000(1:N)
    • Max. Template : 1,000,000(1:1), 200,000(1:N)
    • Max. Logs : 1,000,000(text)
    • LCD : 2-inch color LCD
    • Sound : 16-bit Hi-Fi
    • Ethernet : 10/100 Mbps, auto MDI/MDI-X
    • RS-485 : 1ch host or slave (selectable)
    • Wiegand : 1ch input or output (selectable)
    • TTL : 2ch input
    • Relay : 1 Relay
    • Tamper : Supported
    • Power : DC 12V
    • Operating Temperature : -20°C ~ 50°C (-4°F~ 122°F)
    • Operating Humidity : 0% ~ 80%, non-condensing
    • Dimensions (WxHxD, mm) : 71 x 201 x 44 (bottom)/34 mm(top) (2.80" x 7.91" x 1.7"(bottom)/1.34"(top)
    • Unit Weight : Device: 280g (0.62lb), Bracket: 61g (0.13lb) including washers/bolts

Download
Fingerprint IP Access Terminal 1
