Multi-technology, Mobile ready, Fingerprint reader | Biometric Reader

Biometric Reader

Multi-technology, Mobile ready, Fingerprint reader

HID® Signo™ 25B

The HID® Signo™ Biometric Reader 25B introduces fingerprint authentication to the growing Signo platform from HID Global. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.

Introduce two-factor authentication for additional security or go cardless, the HID Signo Biometric Reader 25B supports a wide range of biometric operating modes including storing fingerprint template on card or on device. The reader is also capable of supporting a large range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

Feature & Specification

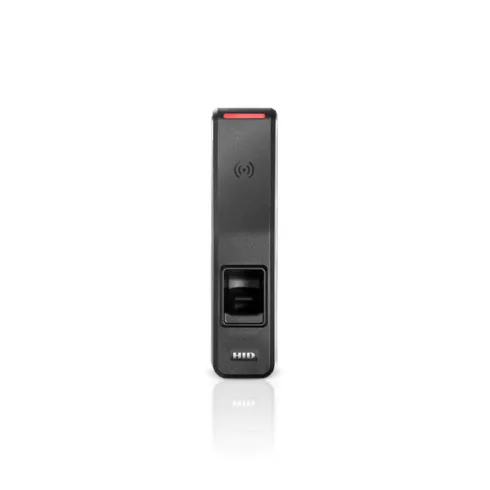

Biometric Reader Multi-technology, Mobile ready, Fingerprint reader 1 ~blog/2022/6/8/25b1

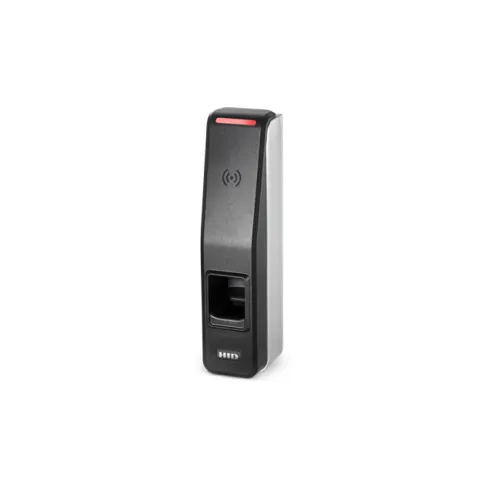

Biometric Reader Multi-technology, Mobile ready, Fingerprint reader 2 ~blog/2022/6/8/25b2

Features
Specification

Features

> Highly Versatile – Unmatched flexibility to deploy multiple authentication modes, including biometric fingerprint and contactless physical and mobile credentials with a single reader platform
> Unparalleled Performance – Ultimate biometric fingerprint match reliability with patented multi-spectral imaging sensor that reads the subdermal layer of the skin for better accuracy
> Connected to the Future – Easily configure and manage in the field with HID Biometric Manager, including support for software upgrades over the network

Specification

• 13.56 MHz Credential Compatibility : Secure Identity Object™ (SIO) on iCLASS® Seos®, iCLASS SE®/SR, iCLASS® Access Control Application (standard iCLASS cards), ISO 14443A (MIFARE) CSN, ISO 14443B CSN, Secure Identity Object (SIO) on NFC-enabled devices using Host-Based Card Emulation, Template on Card with Seos
• 2.4 GHz Credential Compatibility : Secure Identity Object (SIO) on Mobile IDs (Bluetooth Smart)
• Typical Contactless Read Range - Single Technology ID-1 Cards : iCLASS® Seos™ 3 cm), iCLASS® (5 cm), Mifare® Classic , Mifare Plus (8 cm), Mifare DESFire® (EV1, EV2) (4 cm)
• Typical Mobile ID Read Range using Bluetooth & Seos : Twist and Go (2 m), Tap (15 cm)
• Mounting : Mullion Size; mount on door mullion or any flat surface
• Color : Black Body; Silver Mounting Bracket
• Dimensions (width x length x depth) : 1.97" x 8.03" x 2.17" (5.0 cm x 20.4 cm x 5.5 cm)
• Product Weight : 13.04oz (0.38kg)
• Operating Voltage Range : 12 VDC (9-14 VDC)
• Current Draw - Normal Standby Current : 800mA
• Current Draw - Maximum Average : 1.5A @12 VDC
• Current Draw – Peak : 2A @ 12 VDC
• Supervised Inputs Power (MAX) : 0.025W (5mA sink, 5V nominal) 0 to +5 VDC
• Operating Temperature : -4° F to 153° F (-20° C to 66° C)
• Operating Humidity : 0% to 95% relative humidity non-condensing
• Storage Temperature : -40° F to 194° F (-40° C to 90° C)
• Environmental Rating : IP67 Indoor/Outdoor and IK09 Impact Ratings
• Fingerprint Biometric Sensor Type : Optical (Multispectral Imaging)
• Transaction Event Logs : 1,000,0000
• Max number of cardholders : 250,000
• Max number of users : 5,000 (1:N Searching Identification)
