Outdoor IP Fingerprint Terminal
BioLite N2
Suprema BioLite N2 is a Suprema’s 2nd generation outdoor fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema's latest biometric technology and security platform. BioLite N2 provides class-leading performance and security by featuring Suprema's latest fingerprint algorithm coupled with world's best fingerprint sensor. Packed in a rugged IP67 housing, BioLite N2 added flexibility in system design with multi-class RFID reading technology.
Feature & Specification

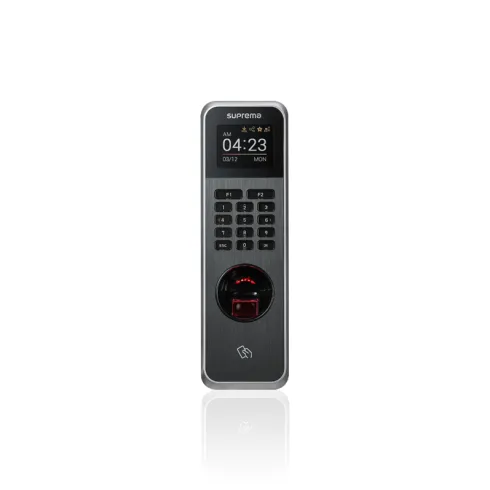

Biometric Reader Outdoor IP Fingerprint Terminal 1 ~blog/2022/6/7/n21

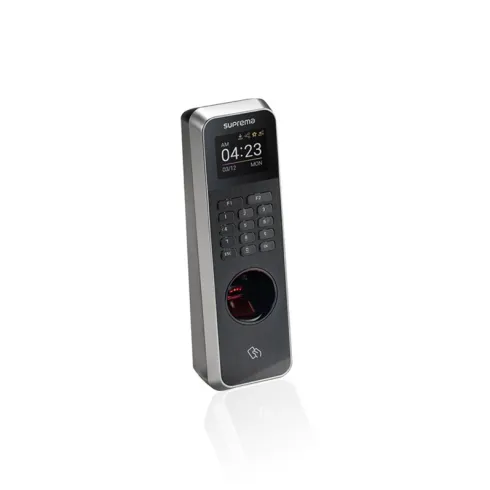

Biometric Reader Outdoor IP Fingerprint Terminal 2 ~blog/2022/6/7/n22

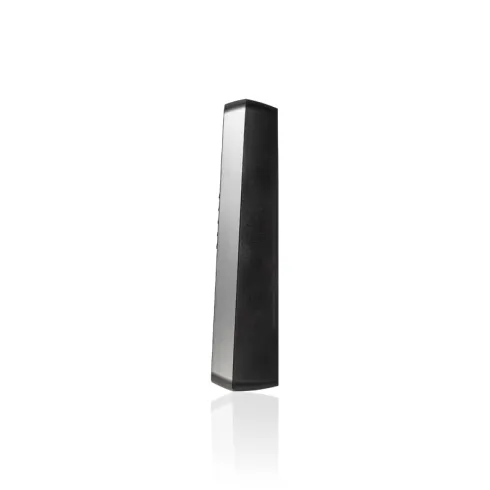

Biometric Reader Outdoor IP Fingerprint Terminal 3 ~blog/2022/6/7/n23
  • Features
  • Specification

    • Specification

    • Biometric : Fingerprint
    • Sensor Type : Optical Sensor (OP6)
    • Template : SUPREMA / ISO 19794-2 / ANSI 378
    • Extractor / Matcher : MINEX certified and compliant
    • RF Option : BLN2-ODB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1 & 2.4GHz BLE, FeliCa. BLN2-OAB, BLN2-PAB : 125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE
    • CPU : 1.2 GHz
    • Memory : 4GB Flash + 64MB RAM
    • Max. User : 10,000
    • Max. Template : 20,000
    • Max. Logs : 1,000,000
    • LCD : 1.77” color LCD
    • Sound : 16-bit Hi-Fi
    • Ethernet : 10/100 Mbps, auto MDI/MDI-X
    • RS-485 : 1ch Host or Slave (Selectable)
    • Wiegand : 1ch Input or Output (Selectable)
    • TTL : 2ch Input
    • Relay : 1 Relay
    • Ingress Protection : IP67
    • Tamper : Supported
    • Power : DC 12V
    • Operating Temperature : -20°C ~ 50°C, (BLN2-PAB: -10°C ~ 50°C)
    • Operating Humidity : 0% ~ 80%, non-condensing
    • Dimensions (WxHxD, mm) : 58 x 190 x 44
