Fingerprint IP Access terminal | Biometric Reader

Biometric Reader

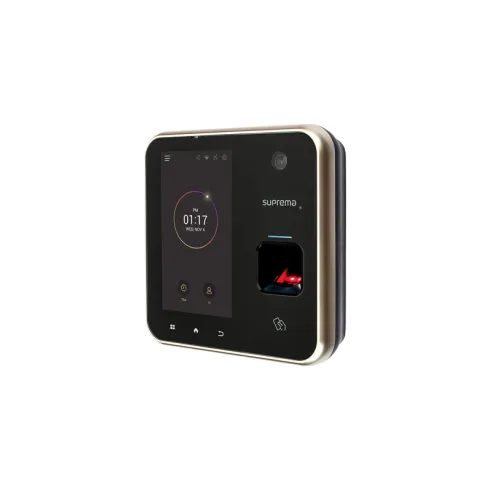

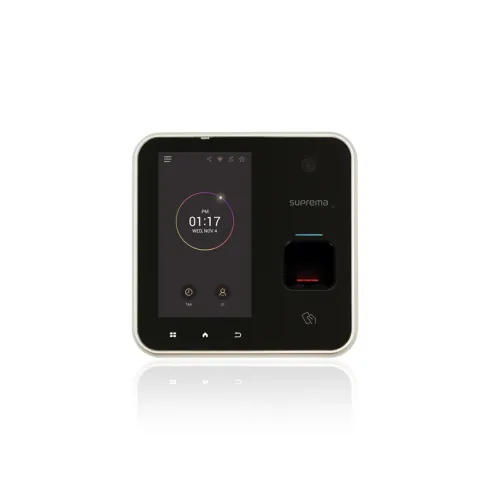

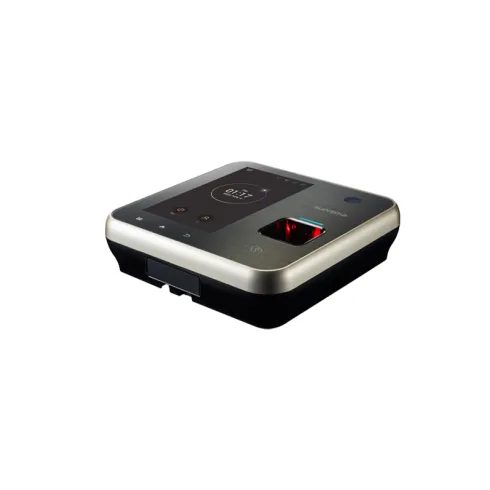

Fingerprint IP Access terminal

BioStation A2

Suprema BioStation A2 is the most advanced fingerprint access control and time attendance terminal featuring Suprema’s next generation biometric technology and security platform. BioStation A2 provides class-leading performance through the World’s best matching performance, uncompromised security and accuracy along with top-notch usability.

Feature & Specification

Biometric Reader Fingerprint IP Access terminal 1 ~blog/2022/6/7/a21

Biometric Reader Fingerprint IP Access terminal 2 ~blog/2022/6/7/a22

Biometric Reader Fingerprint IP Access terminal 3 ~blog/2022/6/7/a23

Features
Specification

Features

> World’s Fastest Performance
• Powered by 1GHz iMX6 Quad-core CPU
• Up to 150,000 matches per second (1:N)
• Data transfer speed up to 5,000 users/min
> Improved Accuracy & Security
• Up to 5x enhanced recognition performance
• New advanced LFD(live ﬁnger detection) technology
• Improved optical sensor and algorithm
> Expanded Capacity
• Max. 500,000 users
• 5mil text logs/50,000 image logs
• Large memory: 1GB RAM+ 8GB Flash
> Best-in-class Features
• 5” IPS LCD touchscreen with reinforced glass front
• 2MP wide-angle camera for clear face image logs
• Android O/S with improved GUI
• Videophone support/Extensive RF card options
> Versatile Interfaces
• TCP/IP, Wi-Fi, PoE(IEEE802.3af)
• USB host/OTG, SD card
• Wiegand, RS485, TTL I/O. relay

Specification

• Biometric : Fingerprint
• Template : SUPREMA /ISO 19794-2 /ANSI 378
• Extractor / Matcher : MINEX certiﬁed and compliant
• LFD : Supported
• RF Option : BSA2-OEPW: 125 KHz EM. BSA2-OHPW: 125 KHz HID Prox. BSA2-OIPW: 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC. BSA2-OMPW: 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC
• CPU : 1.0 GHz Quad Core
• Memory : 1GB RAM + 8GB Flash
• Max. User : 500,000 (1:1), 100,000(1:N)
• Max. Template : 1000000(1:1), 200,000(1:N)
• Max. Logs : 5,000,000(text), 50,000(image)
• LCD : 5” IPS LCD with capacitive touchscreen
• LED : Multi-Color LED
• Sound : 24 bit/Voice DSP (echo cancelation)
• Wi-Fi : Supported (IEEE 802.11 b/g)
• Interfaces : TCP/IP, RS485, Wiegand, TTL, Relays, USB
• SD Card : MicroSD up to 32GB
• PoE : Supported (IEEE 802.3af compliant)
• Tamper : Supported
• Power : DC 12V
• Operating Temperature : -20°C - 50°C
• Operating Humidity : 0% - 80%, non-condensing
• Camera : 2 MP wide-angle (1600 x1200)resolution
• Dimension (W x H x D) : 155 mm x 155 mm x 40 mm
• Unit Weight : 440g
